Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz
Specifications
Brand Name :
OURS
Model Number :
ARS-ZBH1500W
Certification :
CE AND FCC
Place of Origin :
ShenZhen China
MOQ :
1set
Payment Terms :
T/T, Western Union, PAYPAL
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Price :
USD1000/SET-USD1120/SET
Supply Ability :
1000SET
Max Temperat :
90°
Voltage :
110V and 220V
FR :
17khz-200khz
Material :
SUS 304L / SUS 316L
Size :
customer designed
Warranty :
1Year
Condition :
new
Ultrasonic Transducer :
30pcs
Description

Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz

Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz

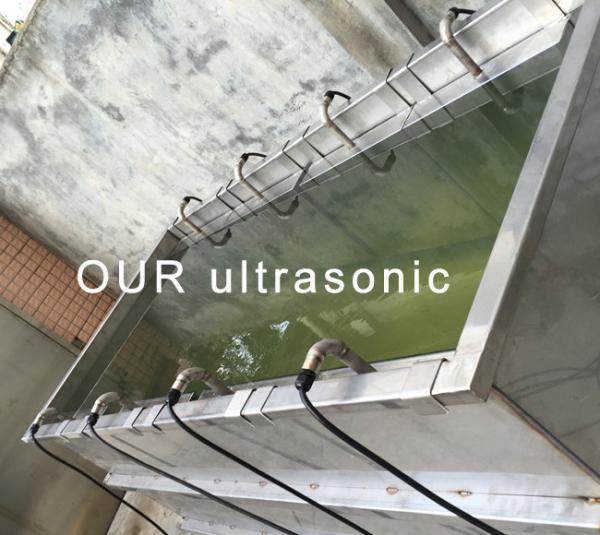

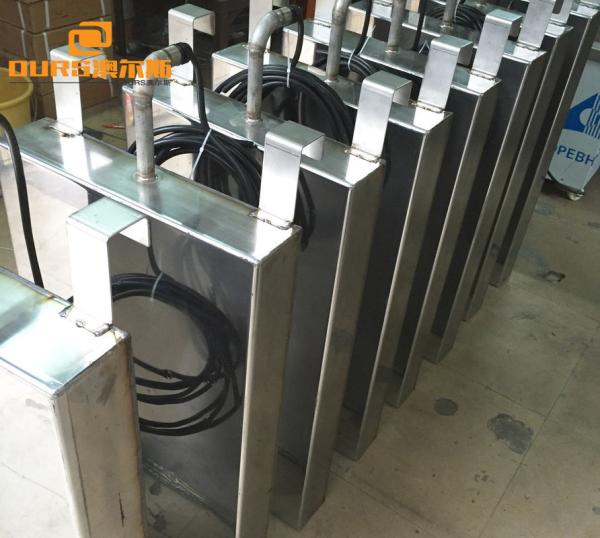

Immersible ultrasonic transducers pack with generator control

The brief introduction of Underwater Ultrasonic Transducer:
Underwater Ultrasonic Transducer Equipment use the split type structure,which high frequency with socket connection between vibration plate and ultrasonic generator, make it convenient for use and maintenance.

Type Description
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting


Application of Underwater Ultrasonic Transducer:

Electronics,jewelry,watches and clocks,lighting
Hardware stamping parts,machinery parts,plumbing parts
Glasses frames,glassware
Watch case and watch strap dewaxing
Electroplating pretreatment and other industries parts
Especially used in the slot ultrasonic cleaning machine

Products Warranty:
The material which we sales will be for one year free maintain if caused by quality itself problem,and to sure operation in correct methods.
If the products damaged owing to your uncorrected use,we will refuse the returned and will be required charge for maintain or replace,please understand.
Don’t mail anything back to us before without any communication with our service,thank you!

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
ARS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
ARS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
ARS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
ARS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
ARS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
ARS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
ARS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
ARS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
ARS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
ARS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz

Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz

Side Type Waterproof 520*450*100mm Piezoelectric Ultrasonic Immersible Transducer Pack 40khz

Immersible ultrasonic transducers pack with generator control
