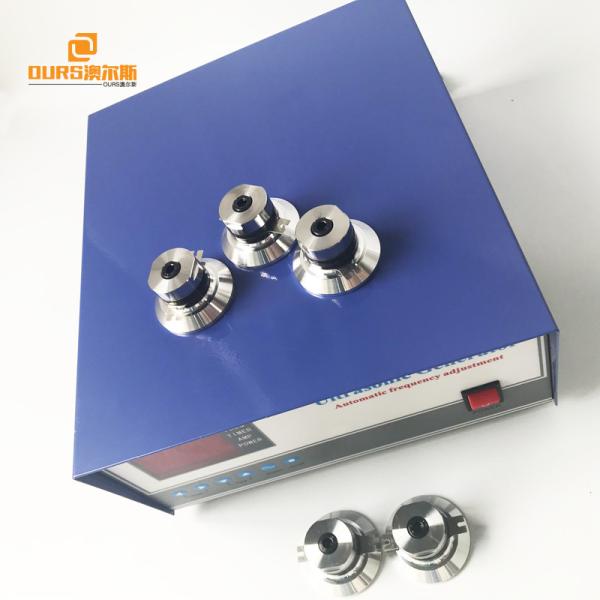

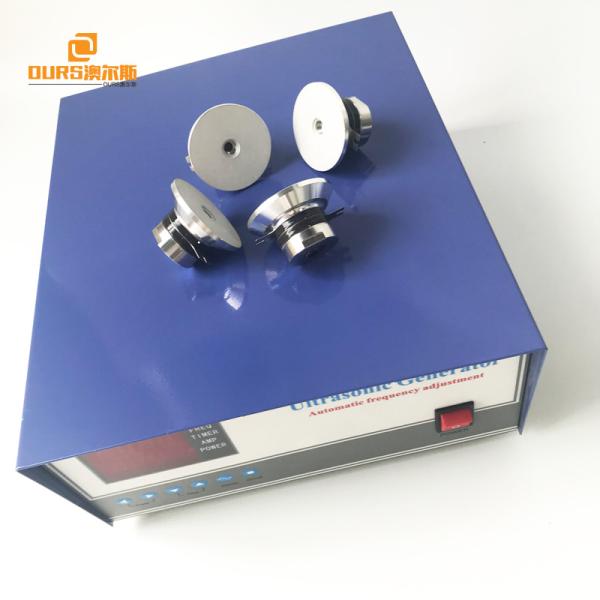

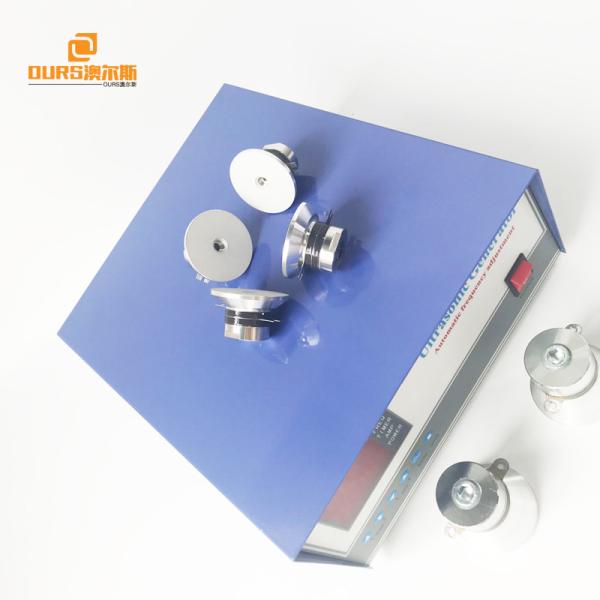

Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-QXDAY1800W
Certification :
CE AND FCC
Place of Origin :
Shenzhen,China
MOQ :
1set
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
10000set
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Price :
USD20-USD400
POWER :
300W-3000W
Voltage :
110V or 220V
fre :
17khz-200khz
time :
60
Customize :
available
Application :
Ultrasonic cleaning
spec :
40K/1800W
model :
401800
Description

Ultrasonic Cleaning Supply Power,1800W Ultrasonic Cleaner Generator For Cleaning

Ultrasonic Cleaning Power Supply,1800W Ultrasonic Cleaner Generator For Cleaning

Ultrasonic generator is a kind of equipment which converts the city electricity into the corresponding high-frequency alternating current of the transducer to drive the transducer to work. It is an important component of the high-power ultrasonic system. It can also be called electronic box, ultrasonic power supply and ultrasonic controller.
Ultrasound generator uses the world's leading structure of the other excitation oscillation circuit, compared with self-excitation oscillation circuit structure in the output power increased by more than 10%. Linear amplification circuit and switching power supply circuit are used in ultrasonic amplification circuit.
The advantages of switching power supply circuit are high conversion efficiency, so high power ultrasonic power supply is adopted in this form.
The advantages of the linear power circuit are that the circuit matching is not strictly required, and the operating frequency is allowed to change continuously and rapidly.
The ultrasonic generator generates a signal of a specific frequency, which can be either a sinusoidal signal or a pulse signal, which is the frequency at which the transducer operates.

Ultrasonic Cleaning Supply Power,1800W Ultrasonic Cleaner Generator For Cleaning

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
