Specifications
Brand Name :
OURS Ultrasonic
Certification :
CE and FCC
Place of Origin :
shenzhen
MOQ :
1set
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs
Delivery Time :
2-3 days
Packaging Details :
according to your request
Model Number :
ARS-HJHNQ42001500
frequency :
15-40khz
power :
100W-4200W
Theory :
Ultrasonic Sensor
Output :
Ultrasonic welding Sensor
type :
ultrasonic welding transducer
model :
ultrasonic welding transducer 4200W
Description

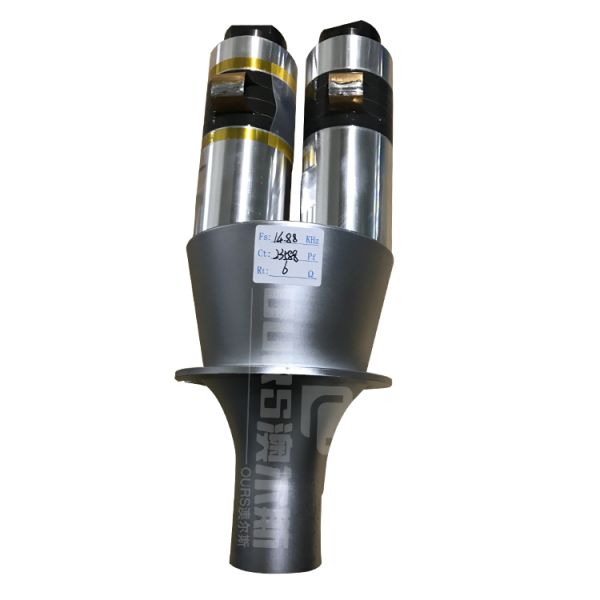

4200W High power ultrasonic transducer for plastic welding or welding system

4200W High Power Ultrasonic Transducer For Plastic Welding Or Welding System

Applications:

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.

Service
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.

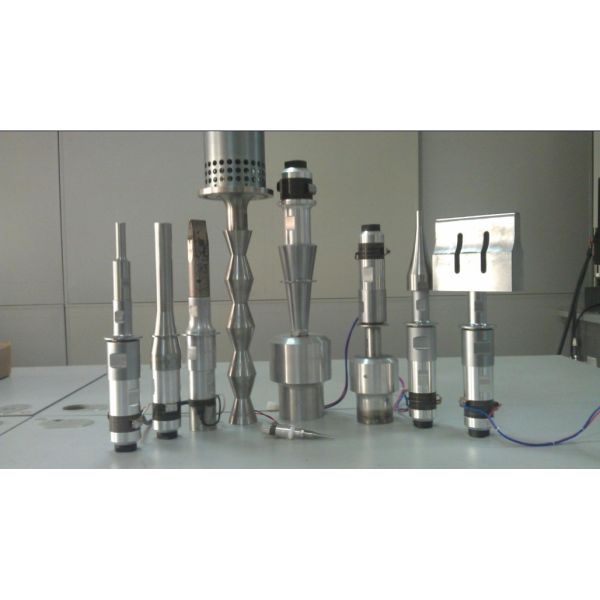

ultrasonic welding transducer with booster,4200W15KHzHigh power ultrasonic transducer for plastic welding or welding system

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500
ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200
