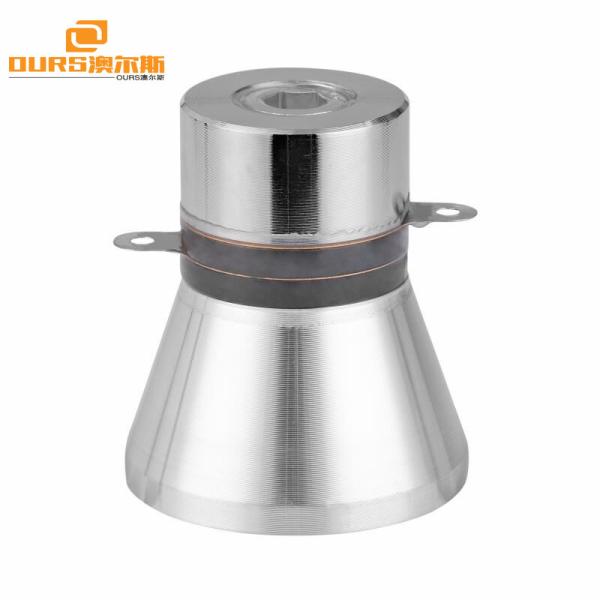

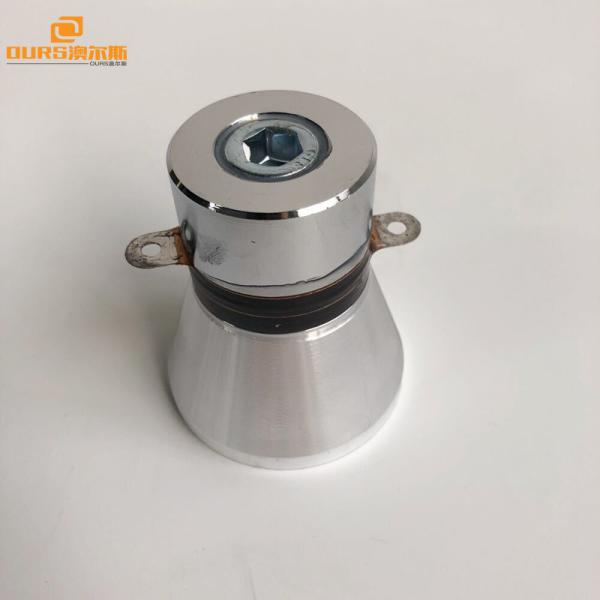

Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ2860 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Price :
USD5/PCS-USD6.5/PCS
Packaging Details :
Carton box or plywood box
Input Power :
60W
Frequency :
28khz

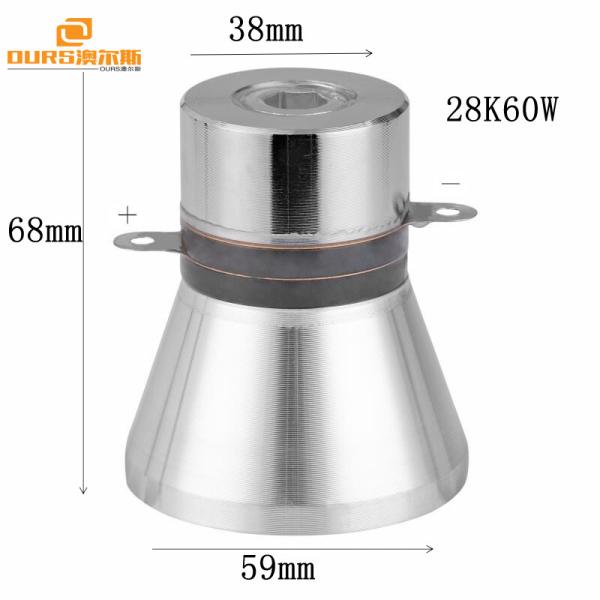

Size :
68*59*38mm
Weight :
470g
Condition :
New
Material :
Stainless Steel
Aplication :
Piezoelectric Vibration sensor
Piezoceramic :
PZT-8
Warranty :
1 Year
MOQ :
1 PCS
Description


Low Power Ultrasonic Cleaning Transducer 60W , Ultrasonic Piezoelectric Transducer 28khz
28khz Low Frequency Ultrasonic Transducer For Medical Cleaning

Piezoelectric transducers are manufactured of lead zirconate titanate, a commom piezoelectric material which expands and contracts when provided with the appropriate electrical frequency and voltage. As the transducer expands and contracts rapidly, the ultrasonic diaphragm vibrates to introduce ultrasonic activity into the cleaning tank. This design represents the most efficient design currently available.

Most manufacturers of piezoelectric ultrasonic systems use high-temperature epoxy to attach the transducers to its radiating surface. Bonds its transducers using a metallurgical stud, and uses epoxy to prevent the ROTATION of the transducer off of this stud, leading a significantly greater bond strength than when using epoxy alone. In fact, if you used a hammer and attempted to break one of our transducers off of the tank, you would rip a hole in the tank rather than detaching the transducer!

Main Features:

  • High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
  • High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
  • Good heat resistance: a large range of working temperature,low resonance impedance and heat productivity.
  • Good construction: fastened by bolt, easy for assembling, high reliability.

Application:

  • Strong cavitations, powerful and effective, quick detergence.
  • Automotive and aerospace industry, mechanical industry, plating industry etc.

Shipping:

Goods will be shipped within 48 hours after receiving the full payment.

  • We ship the goods to the address which is given in PayPal payment. Please make sure that address in PayPal is correct.
  • we will give you the tracking number after we send out the goods, in general, you will receive the goods within five days.
  • If you have any questions, please kindly contact us by email(our email address is may@ultrasonic-technology.com)

Payment:

We accept paypal,T/T & Western Union now.


Our Services:
Our website provides 24-hour online customer services.

OEM＆ODM are welcome.and also provide customized service

Samples order are available,and can be sent with 2-5days.

Dig order will be ready within 7-30 days.

Provide the required certificate as needed.

Client-related information keep strictly confidential.

Offer the discount based on the order quantity.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50
