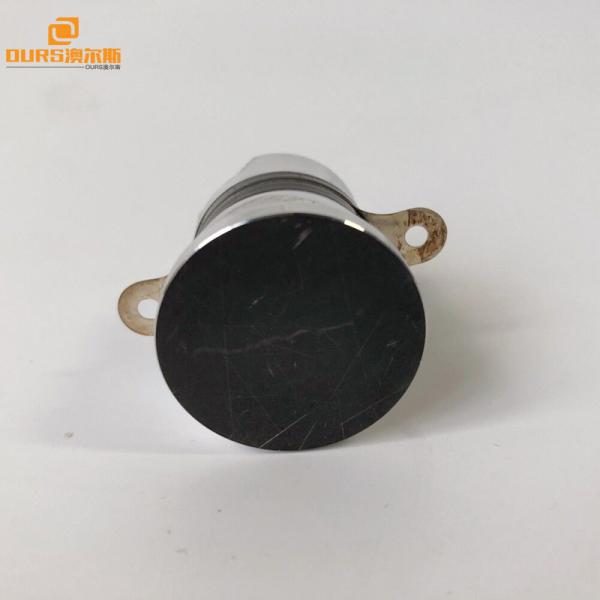

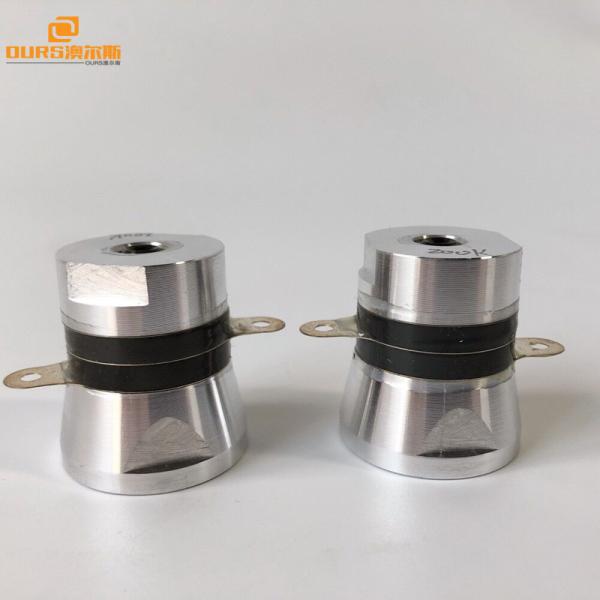

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ20035 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhenChina
MOQ :
1PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Price :
USD13/PCS-USD15/PCS
Packaging Details :
Carton box or plywood box
power :
35W
frequency :
200khz
Output :
Switching Transducer
Item :
Piezoelectric Ultrasonic transducer
Piezoceramics :
PTT-4 Or PZT-8
Warranty :
1 year
MOQ :
1PCS
Color :
Sliver
OEM :
Acceptable
Material :
Stainless Steel
Description

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Ultrasonic transducer are used for ultrasonic cleaning ,medical ,beauty and so on ,also supply ultrasonic power supply ,with sweeping ,adjsutable power Automotive and aerospace industry,mechanical industry, plating industry etc.

In the harsh environment and temperature is large, it remained stable, reliable

ultrasonic transducer transducer appearance neat, high-quality stainless steel and aluminum assembly, rust-proof, acid and alkali.

Advantages:

• Imported original piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;

• High efficiency : high quality mechine, high electro-acoustic conversion efficiency at the resonant frequencies;

• Large amplitude : computer optimized structure, high vibration ratio , large amplitude front cover;

• High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;

• Heat-resistance: small resonant impedance, low heat, wide temperature range.

International Orders:

We have a lot of inventory, customers can make large orders, shipping cheap, we can go into the details by e-mail.

Payment Methods:

1.Prepaid by Bank

2.T/T

3.West Union

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

Piezoelectric Ultrasound Cleaning Transducer 200khz For Spare Parts And Hardware Cleaning

piezoelectric ultrasound transducer 28khz and 40khz for ultrasonic transducer
