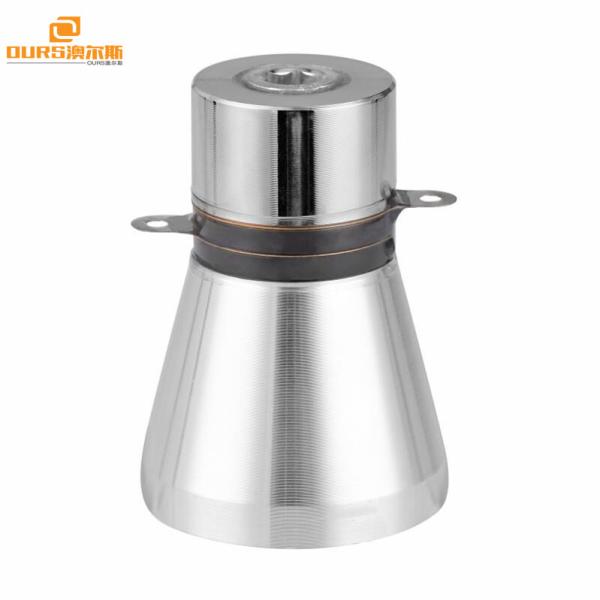

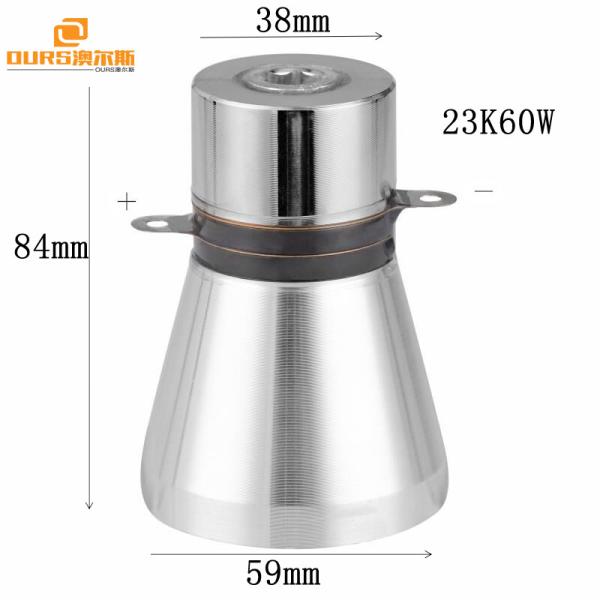

23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts
Specifications
Brand Name :
Ours
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
100000pcs
Delivery Time :
2-3days
Model Number :
ARS-QXHNQ2360 PZT-4
Price :
USD8/PCS-USD10/PCS
Packaging Details :
Carton box or plywood box
Frequency :
23KHZ
Input Power :
60W
Sample :
Available
Material :
Stainless Steel
Output :
Switching Transducer
Piezoelectric Ceramic :
PZT-4
Application :
Ultrasonic Cleaner
Warranty :
1 Year
Description

23K60W Piezoelectric Transducer Ultrasound Transducer for cleaning ultrasonic cleaner parts

25K60W Ultrasonic Cleaning Transducer Used in Ultrasonic Washing Machine

Ultrasonic cleaning transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices

The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.

Ultrasonic atomization is a very conventional method to produce sprays of very small droplets. Resulting droplet size distributions are very narrow and the mean diameter is essentially only controlled by the excitation frequency.

Ultrasonic Transducer Characteristics:

1.good heat resistance

2. large range of working temperature

3.low resonance impedance and heat productivity

4.good construction

5.fastened by bolt

6.easy to installation

7.High reliablity

Payment terms:

Prepaid by Bank/ Paypal/ Western union are acceptable

Our Services:

Your inquiry related to our product & price will be replied within 24hours.

  • Well-trained & experienced staff are to answer all your inquiries in English of course.
  • Working time: 9:00am - 5:30pm, Monday to Friday (UTC+8).
  • OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
  • Your business relationship with us will be confidential to any third party.
  • Good after-sale service offered, please get back if you got question.
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ13550
PZT-4		 54 215 135 10-20 4200 50
