Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD8/PCS-USD9/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
10000PCS
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Frequency :
28khz
Power :
120W
Piezoceramics :
PT4
Application :
Cleaning Machine
MOQ :
1PCS
Color :
Sliver
Warranty :
1 Year
Description

Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty

In order to determine the working state of the transducer, the state equation of its mechanical vibration system and the state equation of its circuit system must be derived. The state equation of the transducer mechanical system (referred to as the mechanical vibration equation) is the relationship between the force and the vibration speed of its mechanical vibration system when the transducer is in working state, while the state equation of the circuit system (referred to as the circuit state equation) is the relationship between the force and the vibration speed of the transducer mechanical vibration system. Describes the vibration characteristics of the circuit system. Because the mechanical system and the circuit system of the transducer are coupled, the vibration of the mechanical system will affect the balance of the circuit, and the change of the circuit will also affect the vibration of the mechanical system. Therefore, we always use these equations to analyze and discuss the working characteristics of the transducer.

Product specifictions:

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ13550
PZT-4		 54 215 135 10-20 4200 50

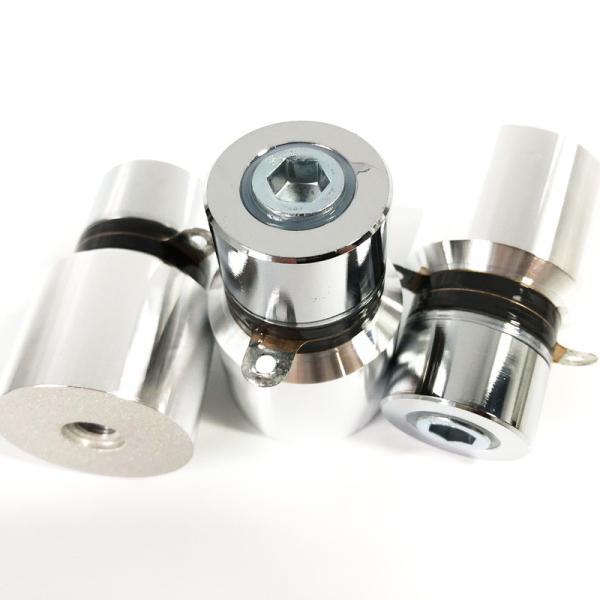

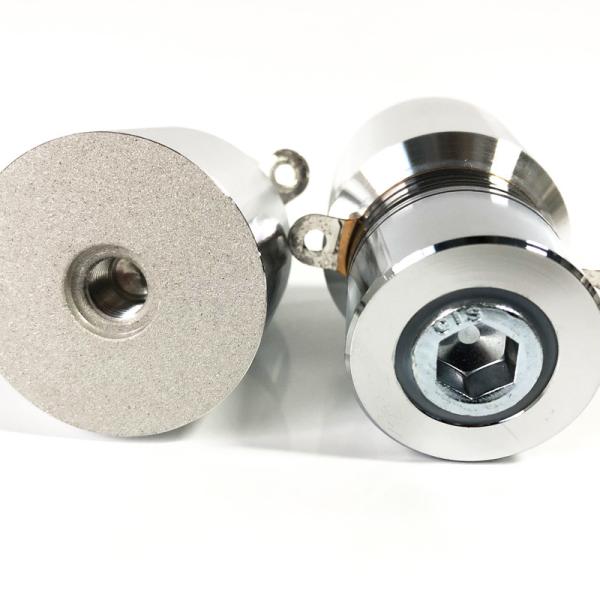

Product Display:

Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty

Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty

Cleaning Tank Ultrasonic Cleaning Transducer 28khz/40khz Sliver Color 1 Year Warranty
