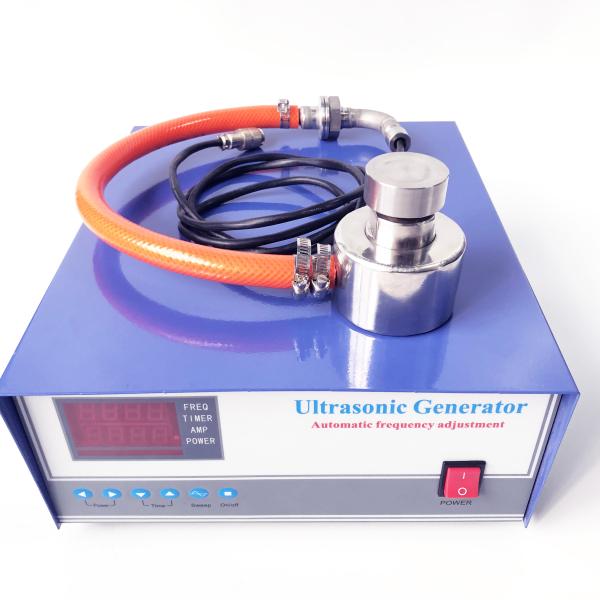

ultrasonic vibration horn with transducer for ultrasonic vibration piezoelectric material
Introduction
Ultrasonic vibrating sieve machine suitable to sieve power, which is light density, low humidity, easy adhesion or a static of the powder and super fine powder, and improve the sieving efficiency. It is widely used in carbonize silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc. It can completely solve the difficult technology problems that other screening machines cannot solve.
Working Principle
The function principle of ultrasonic vibrating screen is adding an ultrasonic energy transforming device on the screen surface of 3-D vibro separator and filter. This device can make the screen surface superpose ultrahigh frequency vibratory energy so that ultrasonic vibrating sieve can keep clear of the mesh and achieve the ideal screen situation. Ultrasonic vibrating screen is usually used in screening superfine powder, which the ordinary vibrating screen can not solved.
Main FeaturesInstallation and Inspection of Ultrasound Vibrating Screen 1. According to the identification of the connection line of the ultrasonic generator, the interface is inserted directly and locked, so that the power supply of the ultrasonic generator and the ultrasonic interface of the screen machine are connected correctly. 2. Turn the power supply of the ultrasonic generator to the minimum, turn on the power switch of the ultrasonic generator, and investigate whether the ammeter is abnormal. (Under normal circumstances, the current should be less than 200 mA). 3. Check and debug the three-dimensional vibration screening filter, and make the material trajectory reach the standard trajectory. 4. Run the three-component vibration screening filter (rotary screening), slightly feed and fine-tune the power supply of the ultrasonic generator to fine-tune the rotation and torsion, so that the screen reaches an ideal state. (Current should be less than 200 mA)
