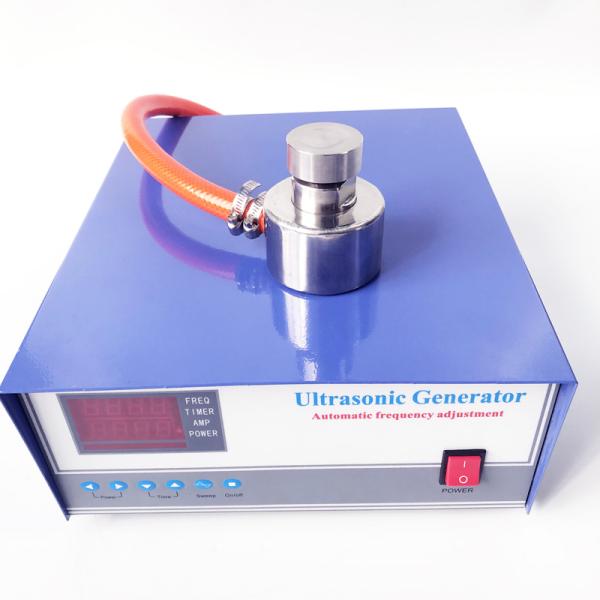

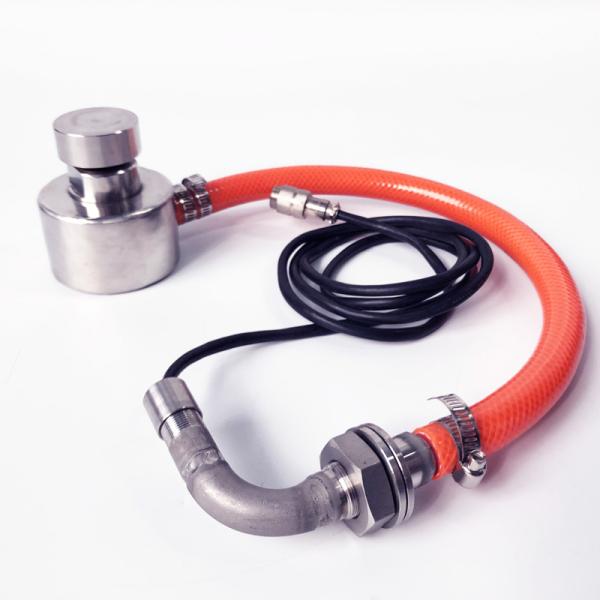

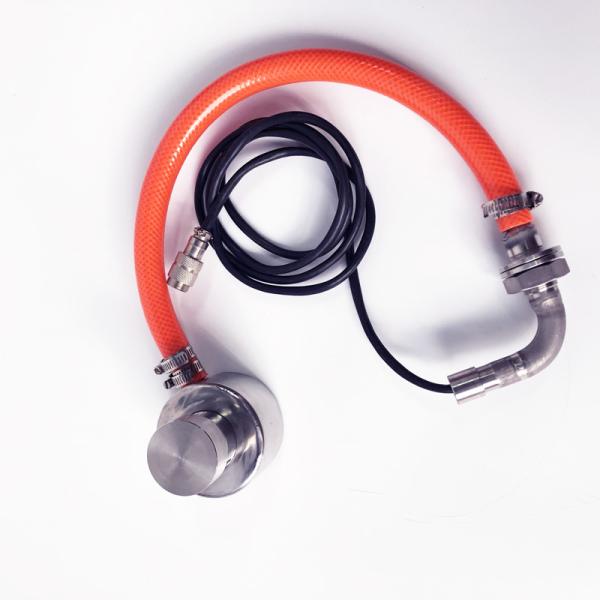

33khz 100Watt ultrasonic sensor for vibration machine in Electromagnetic Powder, Anode Material, Laser PowderUltrasound vibrating screen is often used to screen and treat powder materials. Usually, three-component vibrating screen can not handle materials. Each type of screen has its own material which is good at screening. Ultrasound vibrating screen mainly deals with ultrafine powder such as 325 mesh graphite powder, 200 mesh silicon carbide powder and so on. And the reason why the ultrasonic vibration screen has this "outstanding" is mainly because of its ultrasonic transducer. Ultrasound vibrating screen is a three-dimensional vibrating screen with a set of ultrasonic energy conversion device. The addition of this device can make the material on the screen surface have a high frequency and low amplitude force. The contact time between the material and the screen surface becomes shorter and the vibration frequency becomes larger, so the blocking situation of the material can be greatly reduced. Therefore, the use and operation of the transducer of the ultrasonic vibration screen is very important.

Matters needing attention in the use of ultrasonic transducer: Ultrasound Vibrating Screen

1. Ultrasound mesh must be bonded first, and then connected to the ultrasonic transducer, because the ultrasonic transducer can not function on the mesh without screen, which is easy to cause damage to the mesh.

2. The installation of the ultrasonic transducer should be tightened. If the bolt opening is loose, the powder will enter the transducer. If the conductive material is screened out and the powder enters the transducer, the transducer will be burned out and the equipment will be shut down. 3. The ultrasonic transducer and the ultrasonic power box must be used together. If there is more powder in the field, the power box can be placed in another clean place, away from dust pollution.

4. The most important point is that the sudden power failure is taboo in the process of using the ultrasonic vibration screen. When the ultrasonic equipment needs to be shut down, the power supply on the power box should be turned off first, and then the total power supply should be turned off, which can prolong the life cycle of the equipment.

33khz 100Watt ultrasonic sensor for vibration machine in Electromagnetic Powder, Anode Material, Laser Powder
