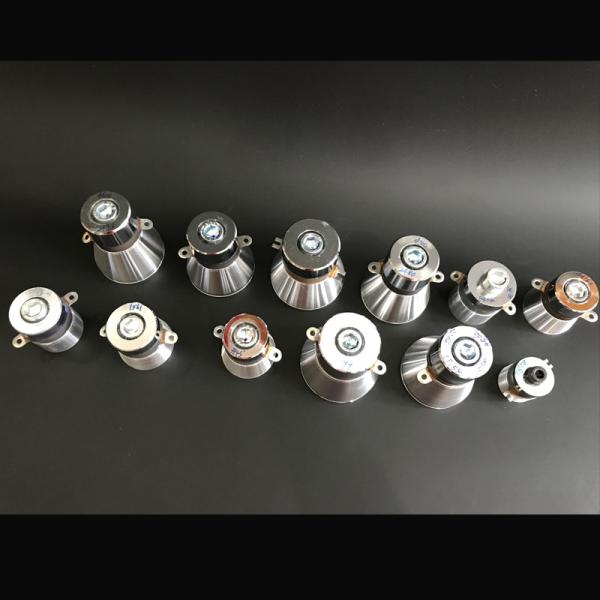

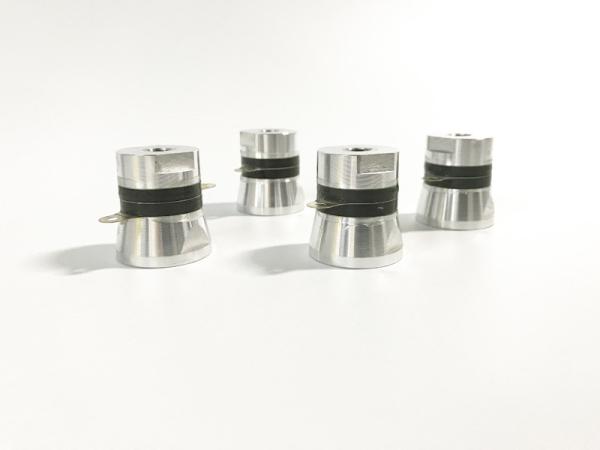

30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
100W
Frequency :
28khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4 or PZT-8
Static Capacity :
4200(pF)±10%
Description

ultrasonic transducer 30 khz frequency ultrasonic cleaning transducer for cleaning tank 30khz

30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank

Transducer, also known as vibrator, is a device that converts the electrical energy and mechanical energy (sound wave vibration) by the piezoelectric effect of piezoelectric ceramics and amplifies the acoustic impedance matching front and rear radiation cover blocks.
Ultrasonic cleaning ultrasonic vibration generated by the transducer, cavitation occurs in the water generated by the instantaneous impact of high-pressure foam was washed to achieve a good cleaning effect.
Ultrasonic cleaning transducers generally use the horn-type composite matrix structure (which is Lan Jie Wenzizhu structure), which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressed screw, electrode sheet, and insulating sleeve. Apply appropriate prestress, the transducer in high-power, high-amplitude conditions have good electromechanical conversion efficiency.
Ultrasonic cleaning transducer is a continuous work of the power transducer, generally the average continuous operation to calculate the constant and its power size.


The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.

UlTRASONIC TRANSDUCER CHARACTERISTICS

1.Small machinery loss,
2.High efficiency electricity
3.Sound transfer,
4.Big swing and less heat.
5.Good construction
6.Easy to installation
7.High reliablity
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50

30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank

30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank


30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank

Packing:
30 Khz Frequency Ultrasonic Cleaning Transducer 100 Watt For Cleaning Tank

ultrasonic transducer 30 khz frequency ultrasonic cleaning transducer for cleaning tank 30khz
