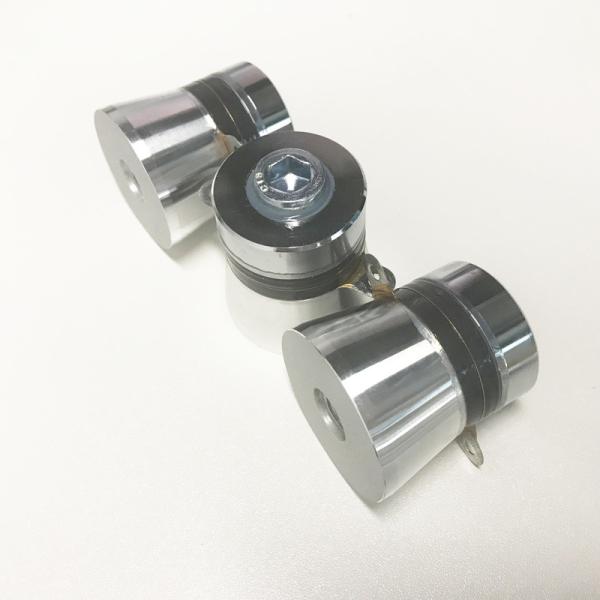

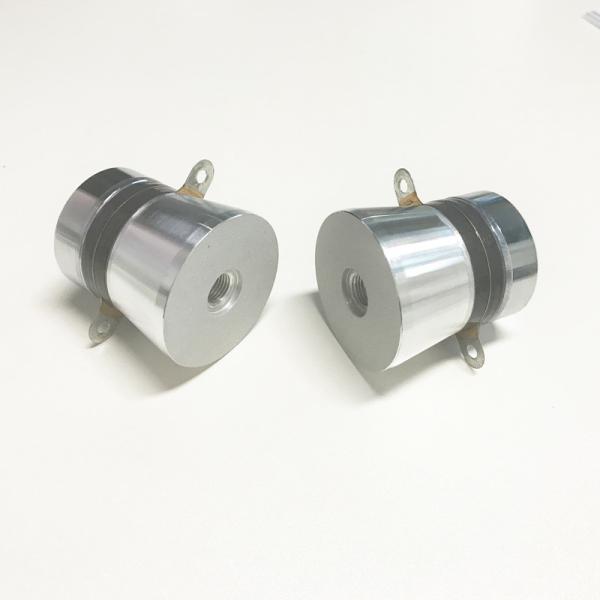

20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
100W
Frequency :
20khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4 or PZT-8
Static Capacity :
4200(pF)±10%
Description

20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer​
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.


Quick Detail

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.


Payment Terms:Prepaid by Bnak, T/T and West Union, ect.

Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50

20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer

Packing:
20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer

20khz/100W Ultrasonic Cleaning Transducer pzt-8,Waterproof corrosion resistant ultrasonic cleaner transducer​
