ultrasonic vibration frequency generator 33khz frequency ultrasonic vibrating screen 300Watt

ultrasonic vibration frequency generator 33khz frequency ultrasonic vibrating screen 300Watt

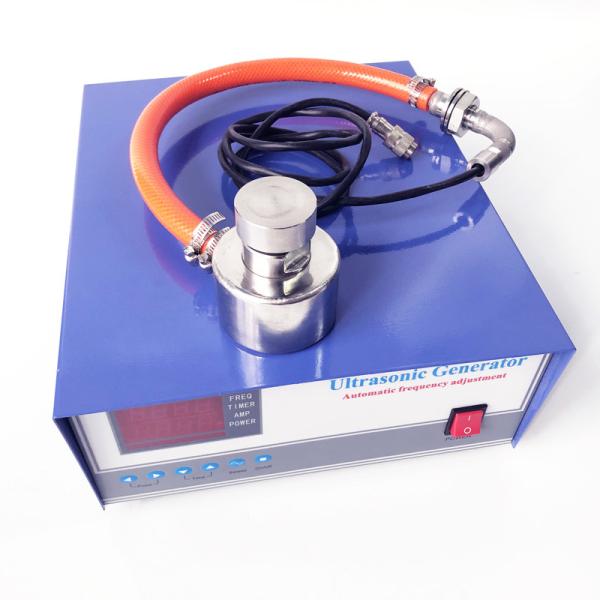

Ultrasound resonant power supply: 38KHz high frequency high power ultrasonic resonant power supply. Built-in micro-computer chip can automatically track the whole digital frequency according to the different states of ultrasound, without manual adjustment, and it is simple and convenient to operate. The oscillator with long working time has low calorific value and stable working condition.
1. High Frequency Connecting Wire: The cable is used to connect the ultrasonic oscillator and the ultrasonic resonance power supply.
Connector: Aeronautical Connection Plug-in.
3. Oscillator: High performance ultrasonic converter.
4. Ultrasound grid: It consists of external grid and resonance ring.
Screen mesh: suitable for 10 to 635 meshes.

Characteristic
1) Excellent screening ability and higher screening accuracy, achieve high-precision screening, screening accuracy can be increased by 1-70%, production can be increased by 0.5-10 times.
2) No need to clear the net of rubber balls to eliminate the re-pollution caused by rubber wear.
3) Really solve the problem of screening materials with strong adsorption, easy reunion, high static electricity and light specific gravity.
4) Ensure that the characteristics of the screened materials remain unchanged.
5) Digital signal input to realize automatic frequency tracking.
6) Transducer energy conversion efficiency is high (up to foreign peer standards).
7) 24 hours continuous operation, control power supply and transducer without cooling (up to international standards of similar products).
8) The transducer and screen mesh are connected by screw, which is convenient for disassembly, assembly and cleaning.
9) Separate structure with resonance ring, good effect and long service life of screen.
10) It can screen 25 m powder and 10 m liquid.
11) Effective prevention of screen clogging, difficult to screen materials will hardly clog the mesh. It can control the narrow granularity range.
12) Fixed mesh frame with bonded screen, no pollution, no dead angle, uniform force and convenient replacement.
