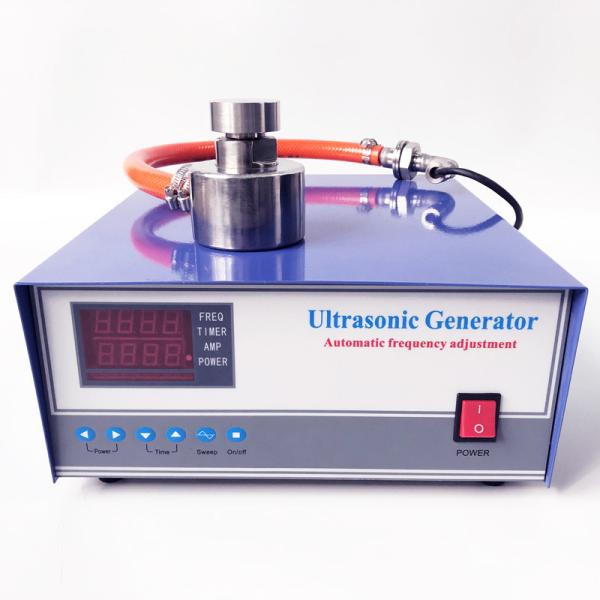

Vibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve Machine
Vibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve Machine
Vibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve Machine
Vibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve Machine
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-ZDDY
Certification :
CE AND FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1set
Price :
USD300
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
10000set
Delivery Time :
1-3days
Packaging Details :
CARTON BOX&FOAM
FR :
33khz
POWER :
100W-300W
Voltage :
110V 120Vor 220V 230V240V
TIMER :
HAVE
Clean Type :
ultrasonic vibrating screen
Machine Type :
Ultrasonic Generator
WARATEE :
1 YEAR
LEADTIME :
1-3DAYS
APPLICATION :
ultrasonic vibrating screen
Description

ultrasonic vibrating screen generator and transducer for vibrating sieve machine 100W/300W

Ultrasound vibrating screen is to convert 220V, 50Hz or 110V, 60Hz electric energy into 18KHz high frequency electric energy, input the ultrasonic transducer, and turn it into 18KHz mechanical vibration, so as to achieve the purpose of efficient screening and cleaning. The system introduces a low amplitude and high frequency ultrasonic vibration wave (mechanical wave) into the screen mesh on the basis of the traditional vibration screen to improve the screening performance of ultrafine particles.

It is especially suitable for users with high added value and fine separation. Ultrasound vibrating screen is a derivative of rotary vibrating screen, which combines the ultrasonic controller with the vibrating screen organically. On the basis of years of research and production of rotary vibrating screen, a high-frequency and low-amplitude ultrasonic vibration wave is superimposed on the screen surface. Ultra-fine powder accepts huge ultrasonic acceleration, so that the material on the screen surface remains suspended all the time, thus restraining adhesion and friction. Screening problems such as strong adsorption, easy reunion, high static electricity, high fineness, high density and light specific gravity are solved by blocking factors such as wiping, leveling and wedging, so that screening of ultrafine powder is no longer difficult, especially suitable for users of high quality and fine powder.

Type power frequency Voltage
OURS-ZDDY100W 100W 33KHZ 110V or 220V
OURS-ZDDY300W 300W 33KHZ 110V or 220V

Vibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve MachineVibrating Screen Digital Ultrasonic Generator Transducer 100/300W For Vibrating Sieve Machine

ultrasonic vibrating screen generator and transducer for vibrating sieve machine 100W/300W
