2000W High Power Ultrasonic Circuit Board Generator Adjustable Frequency 110V/220V
2000W High Power Ultrasonic Circuit Board Generator Adjustable Frequency 110V/220V
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DLB600
Certification :
CE and FCC
Place of Origin :
shenzhen china
MOQ :
1set
Price :
USD25-USD220
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
10000
Delivery Time :
1-5days
Packaging Details :
Carton box or plywood box
Power :
200W-3000W
fre :
20-135KHZ
function :
adjustable frequency
Voltage :
110V or 220V
application :
cleaning generator
Description

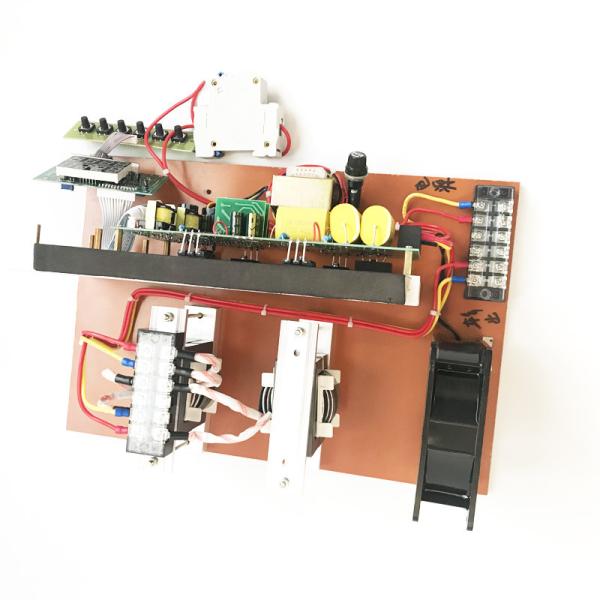

2000W High power ultrasonic Circuit board generator for cleaning machine 0khz,25khz,28khz,30khz,33khz,40khz

Brief performance of low power ultrasonic generator: The control box adopts advanced technology such as micro-computer controlled excitation circuit, frequency automatic tracking and frequency sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic frequency tracking makes output matching better, power stronger and efficiency higher. The unique sweeping mode makes the cleaning liquid form a fine reflux under the effect of sweeping frequency, and takes the dirt stripped from the workpiece surface in time, so as to achieve faster and more thorough cleaning effect and higher efficiency of ultrasonic cleaning. At the same time, it has perfect protection function: overheat protection and overcurrent protection, which makes the work more reliable.

Low power ultrasonic generator with digital power adjustment can adapt to various cleaning requirements.

Type Frequency Power Dimension
(mm)		 Transducer numbers
ARS-DLB50W 25khz,28khz,33khz,40khz 50W 132×85×45mm 1 piece
ARS-DLB60W 25khz,28khz,33khz,40khz 60W 132×85×45mm 1 piece
ARS-DLB100W 25khz,28khz,33khz,40khz 100W 132×85×45mm 1-2 pieces
ARS-DLB120W 25khz,28khz,33khz,40khz 120W 132×85×45mm 1-2 pieces
ARS-DLB150W 25khz,28khz,33khz,40khz 150W 132×85×45mm 1-3 pieces
ARS-DLB200W 25khz,28khz,33khz,40khz,80khz,100khz,135khz 200W 180×130×60mm 4 pieces
ARS-DLB300W 25khz,28khz,33khz,40khz 300W 180×130×60mm 6 pieces
ARS-DLB400W 25khz,28khz,33khz,40khz 400W 180×130×60mm 8 pieces
ARS-DLB500W 25khz,28khz,33khz,40khz 500W 180×130×60mm 10 pieces
ARS-DLB600W 25khz,28khz,33khz,40khz 600W 180×130×60mm 12 pieces

Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional

Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

2000W High power ultrasonic Circuit board generator for cleaning machine 0khz,25khz,28khz,30khz,33khz,40khz
