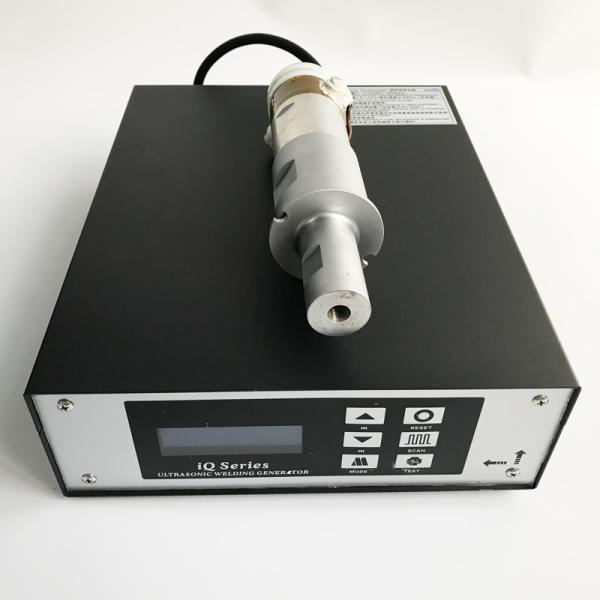

DC Ultrasonic Welding Equipment , Portable Ultrasonic Welder 1800W/15khz
DC Ultrasonic Welding Equipment , Portable Ultrasonic Welder 1800W/15khz
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-HJDY1000W
Certification :
FCC and CE
Place of Origin :
Shenzhen China
MOQ :
1SET
Price :
USD480-USD680
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
5000set month
Delivery Time :
2-3 DAYS
Packaging Details :
Carton box or plywood box
FR :
15khz or 20khz
power :
300w-3000w
Voltage :
110V or 220v
Usage :
welding machine
Warranty :
1 year
Weight :
11KG
Material :
Stainless Steel for Ultrasonic Plastic Welder
Keyword :
Ultrasonic Welding Generator
Description

1800W/15khz ultrasonic welding generator DC Welding Generator,Portable Welding Generator

Ultrasound detection:

In order to achieve good performance and maintain the performance of the machine, it is very important to adjust the resonance between generator and transducer system.

A: Before tuning, make sure that the welding head and the secondary rod must be locked. When tuning, the welding head should not touch other objects.

B: Turn on the power switch and the power indicator lights up.

C: Press the ultrasonic test switch and look at the load meter. (If the ammeter pointer is over 30% or more than 2A, the time to press the ultrasonic test switch is very short.) Adjust the tuning inductance and rotate left and right until the minimum position of the load meter is indicated, usually between 5% and 15% or 300 MA-900MA.

D: Because of the clamp position, the adjusting range of the tuning inductance is only 360 degrees. If the frequency of the welding head is far different from that of 20KHZ or 15KHZ, the cover should be opened and the fixed position should be removed to adjust.

Type Power(W) Frequency (KHz)
ARS-HJDY-1500W15 1500W 15KHZ
ARS-HJDY-1500W20 1500W 20KHZ
ARS-HJDY-1800W15 1800W 15KHZ
ARS-HJDY-1800W20 1800W 20KHZ
ARS-HJDY-2000W15 2000W 15KHZ
ARS-HJDY-2600W15 2600W 15KHZ
ARS-HJDY-2600W20 2600W 20KHZ
ARS-HJDY-3200W15 3200W 15KHZ
ARS-HJDY-4200W15 4200W 15KHZ
ARS-HJDY-1200W28 1200W 28KHZ
ARS-HJDY-1000W35 1000W 35KHZ
ARS-HJDY-800W40 800W 40KHZ

1800W/15khz ultrasonic welding generator DC Welding Generator,Portable Welding Generator
