FR 20KHZ-200KHZ Branson Ultrasonic Generator For Branson 8300 Ultrasonic Cleaner
FR 20KHZ-200KHZ Branson Ultrasonic Generator For Branson 8300 Ultrasonic Cleaner
FR 20KHZ-200KHZ Branson Ultrasonic Generator For Branson 8300 Ultrasonic Cleaner
FR 20KHZ-200KHZ Branson Ultrasonic Generator For Branson 8300 Ultrasonic Cleaner
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-QXDY
Certification :
CE AND FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1set
Price :
USD25-USD400
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
10000set
Delivery Time :
1-3days
Packaging Details :
CARTON BOX&FOAM
FR :
20KHZ-200KHZ
POWER :
300W-3000W
Voltage :
110V 120Vor 220V 230V240V
TIMER :
HAVE
Clean Type :
Industrial Ultrasonic Cleaner
Machine Type :
Ultrasonic Generator
WARATEE :
1 YEAR
LEADTIME :
1-3DAYS
APPLICATION :
ULTRASONIC INDUSTRY CLEANING
Description

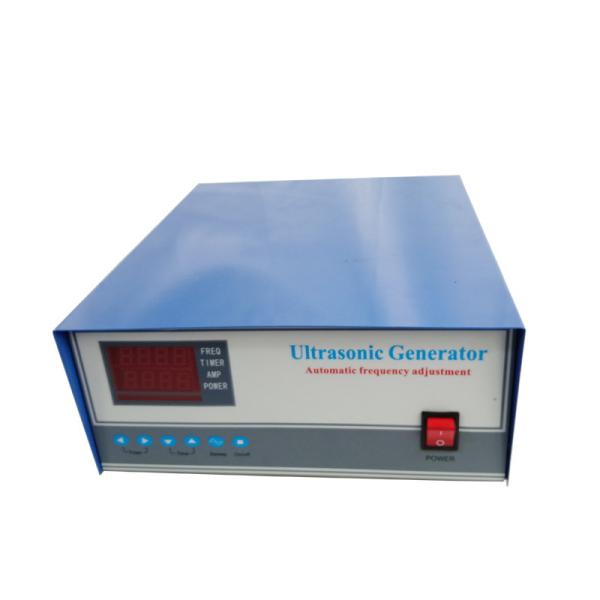

branson ultrasonic generator for branson 8300 ultrasonic cleaner power supply 2000W ultrasonic cleaning machine

The panel button is concise and clear, and does not need complicated process.
Automatic frequency control
Once the generator has completed its initial setup, it can work continuously without having to adjust again. Frequency modulation and frequency automatic compensation bandwidth is larger than the same type of products, user-friendly mold matching, to avoid temperature rise resulting in reduced stability.
Dual system protection circuit
Ensure the reliability of the system under proper operating conditions. When the system operates under unsuitable operating conditions (e.g. improper tuning, generator overload, mismatched welding head or amplitude modulator, improper connection or damage), the protection circuit will stop the generator to protect the generator and other system components from damage. (optional external alarm activation device, activate external alarm, report defective goods or close system).
Modularization of components
The components can be installed and disassembled quickly, which is convenient for replacement and maintenance, and ensures continuity of production.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
