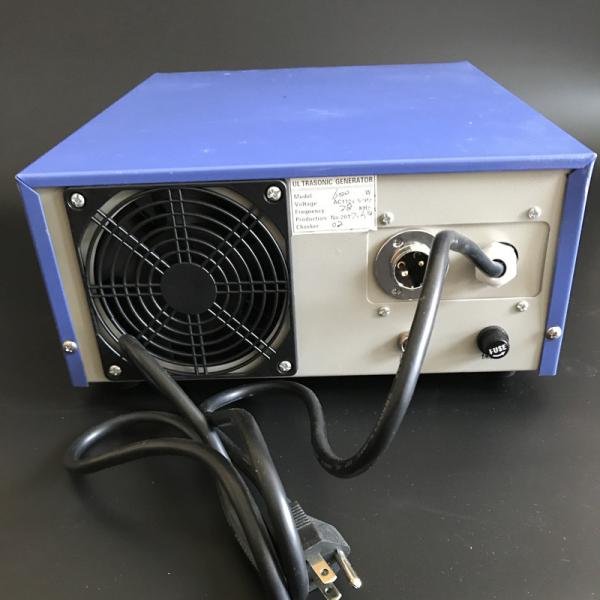

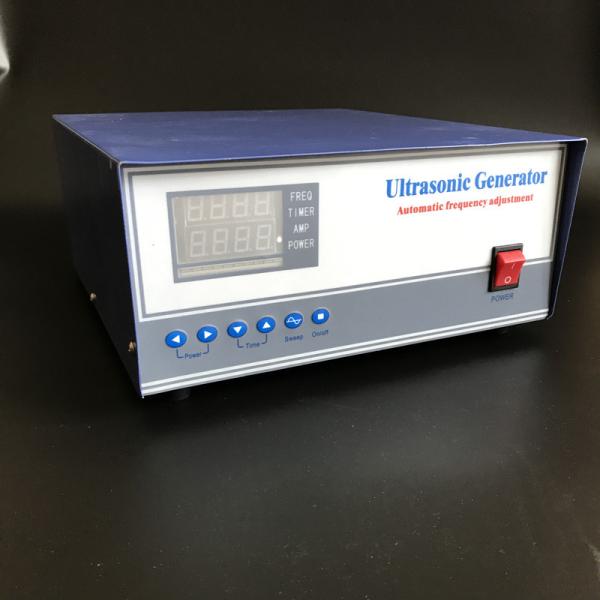

300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment
300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment
300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment
300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-QXDY
Certification :
CE AND FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1set
Price :
USD25-USD400
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
10000set
Delivery Time :
1-3days
Packaging Details :
CARTON BOX&FOAM
FR :
20KHZ-200KHZ
POWER :
300W-3000W
Voltage :
110V 120Vor 220V 230V240V
TIMER :
HAVE
Clean Type :
Industrial Ultrasonic Cleaner
Machine Type :
Ultrasonic Generator
WARATEE :
1 YEAR
LEADTIME :
1-3DAYS
APPLICATION :
ULTRASONIC INDUSTRY CLEANING
Description

300W low power ultrasonic generator for drive ultrasonic cleaning equipment 220V 20-40frequency adjusted

The ultrasonic generator is a kind of equipment for electric conversion high frequency alternating current transducer to drive the corresponding transducer work, high power ultrasonic system is an important part, which can also be called the electronic box, ultrasonic power supply, ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, but in fact, the ultrasonic generator is only part of the ultrasonic drive power supply. The ultrasonic power supply according to incentive mode can be divided into self-excited and excitation, and the ultrasonic generator is that it refers to excitation type ultrasonic power, due to its excited oscillation circuit at the output power of a self-excited 10% higher, so most of the current ultrasonic generator was used as the driving power.

The input of the ultrasonic generator is a fixed frequency signal, the waveform of the signal is uncertain, sine and pulse, but the frequency is fixed to the frequency of the transducer, generally 20, 25, 28, 33, 40, 60KHz and so on. Through the internal conversion of ultrasonic generator, its output is power signal, frequency tracking signal and so on.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment300W Low Power Digital Ultrasonic Generator For Drive Ultrasonic Cleaning Equipment

300W low power ultrasonic generator for drive ultrasonic cleaning equipment 220V 20-40frequency adjusted
