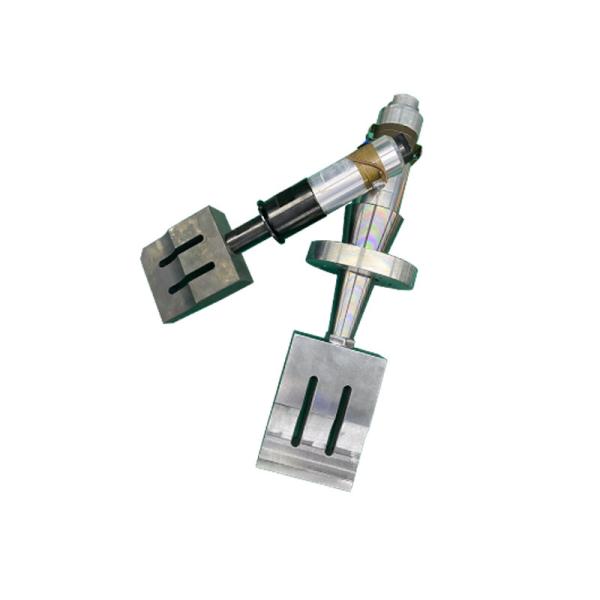

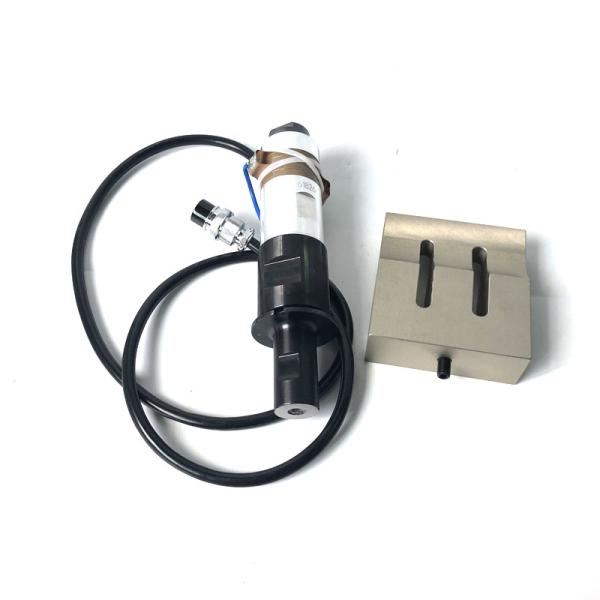

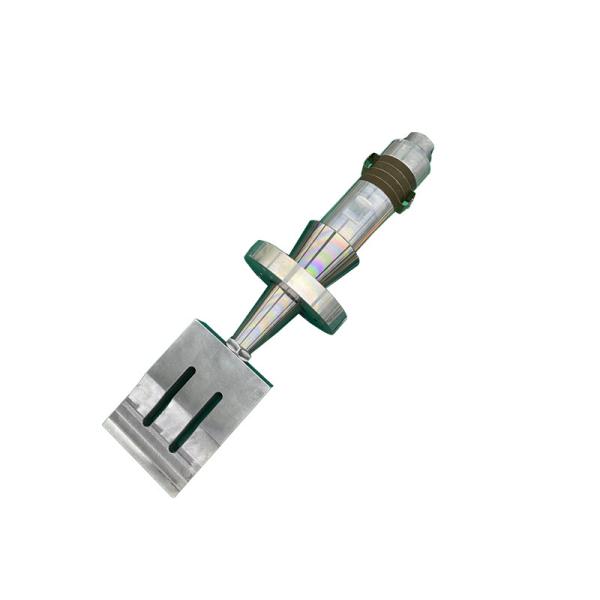

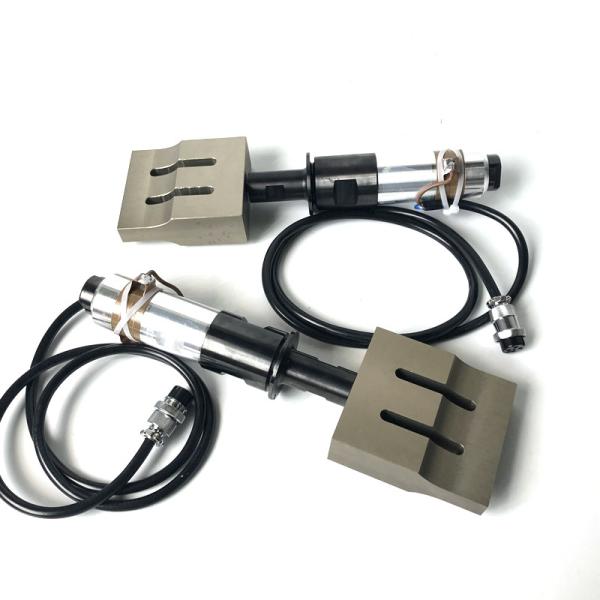

15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-HJHNQ201500
Certification :
CE and FCC
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
USD150-USD160
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs
Delivery Time :
within 5 days
Packaging Details :
export carton
frequency :
15-40khz
power :
100W-4200W
Output :
Switching Transducer
Usage :
Vibration Sensor
Application :
Plastic Ultrasonic Welding Transducer
type :
1500w ultrasonic welding transducer
Description

15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding

At the same time, it should be considered that the resonance frequency summit of the system becomes very sharp after the ultrasonic transducer is connected with the amplitude transformer and the die head, that is, the bandwidth is very narrow, the mechanical quality factor is very large, and the frequency offset will cause a great increase in impedance. Performance in the driving power supply is the power supply (amplitude meter power) large or overload protection. If it is no-load adjustment at this time, it is likely to cause chip dislocation, chip crack or central screw break. Power matching and impedance matching mainly consider that the ultrasonic welding system is a gap type work, the load changes greatly, there should be enough power output when welding, and the minimum amplitude should be controlled when no-load.

Otherwise, as mentioned earlier, a large input at no load will damage the transducer. When the load is full, the power will not go up, and the welding will not work.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500
ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200

15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding

15kHz 20kHz 35kHz Ultrasonic Welding Transducer Horn for non-woven fabric welding
