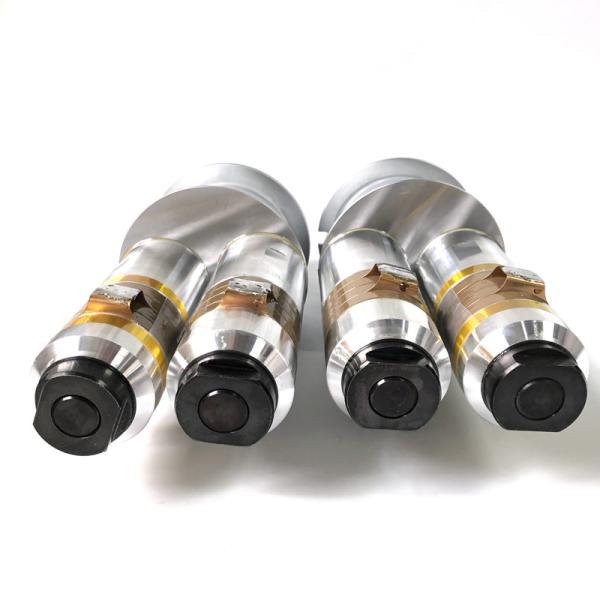

2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine
2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine
2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine
2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-HJHNQ201500
Certification :
CE and FCC
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
USD150-USD160
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs
Delivery Time :
within 5 days
Packaging Details :
export carton
frequency :
15-40khz
power :
100W-4200W
Output :
Switching Transducer
Usage :
Vibration Sensor
Application :
Plastic Ultrasonic Welding Transducer
type :
1500w ultrasonic welding transducer
Description

2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine

Matching operation of transducer and generator Frequency matching is also very important. The first reason is that the ultrasonic transducer can only work at its resonant frequency, so the driving power, the horn, and the welding die (tool head) should all work at this frequency. Generally speaking, we hope that the maximum difference is no more than ± 0.1khz, which is better if it is smaller. We strongly recommend that the frequency of the matching welding die (welding head) is 0.1khz lower than the vibrator frequency (small signal frequency). That is to say, if the frequency of small signal measurement of the original vibrator is 14.85 kHz, it is the best to measure the frequency of 14.75 kHz after connecting the mold.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500
ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200

2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine

2600W/15khz 15kHz ultrasonic welder Transducer Booster Horn Ultrasonic Welding System In N95 Mask Machine
