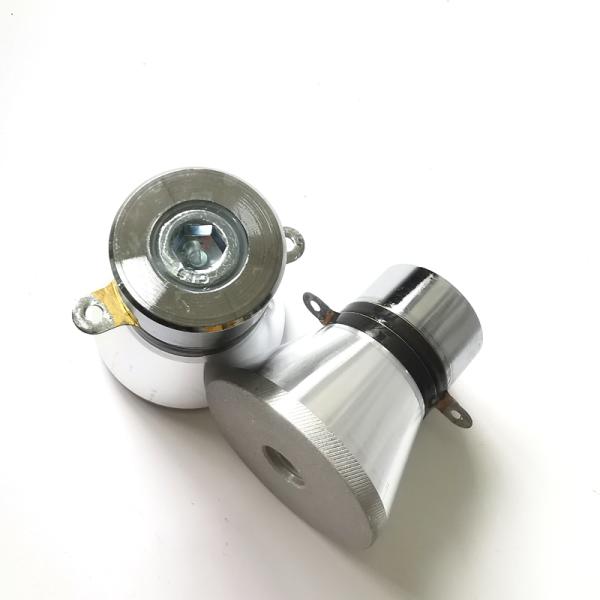

28khz 60W PZT-4 Ultrasound Piezoelectric Transducer
28khz 60W PZT-4 Ultrasound Piezoelectric Transducer
28khz 60W PZT-4 Ultrasound Piezoelectric Transducer
28khz 60W PZT-4 Ultrasound Piezoelectric Transducer
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
60W
Frequency :
28khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4 or PZT-8
Static Capacity :
4200(pF)±10%
Description

28khz/60W/PZT-4 ultrasound piezoelectric transducer

The company has been growing for 15 years, and is willing to work with colleagues from all walks of life to seek common development and continue to provide excellent products and services for new and old customers. Our company mainly engaged in design, research and development, processing, production and sales: ceramic components, transducers, sensors, ultrasonic power supply, ultrasonic accessories; the export of our own products and the import of required equipment, technology, raw and auxiliary materials.

Our annual spot supply frequency is 17kmz / 20kmz / 22kmz / 25kmz / 28kmz / 33kmz / 40kmz / 53kmz / 60kmz / 80kmz / 100kmz / 120kmz / 200kmz cleaning transducer.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50

28khz 60W PZT-4 Ultrasound Piezoelectric Transducer

28khz/60W/PZT-4 ultrasound piezoelectric transducer
