FCC 20Khz 2000w Ultrasonic Plastic Welder Transducer
FCC 20Khz 2000w Ultrasonic Plastic Welder Transducer
FCC 20Khz 2000w Ultrasonic Plastic Welder Transducer
FCC 20Khz 2000w Ultrasonic Plastic Welder Transducer
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-HJHNQ201500
Certification :
CE and FCC
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
USD150-USD160
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs
Delivery Time :
within 5 days
Packaging Details :
export carton
frequency :
20khz
power :
2000W
Output :
Switching Transducer
Usage :
Vibration Sensor
Application :
Plastic Ultrasonic Welding Transducer
type :
2000w ultrasonic welding transducer
Description

20Khz 2000w Ultrasonic Plastic Welding Machine transducer

Characteristics of ultrasonic transducer
1. LY12 alloy aluminum is used in the front pressing block, which has the advantages of high ultrasonic transmission speed, small negative reactance and high conversion efficiency;
2. Independent research and development of piezoelectric ceramic chip, stable performance, high Q value, low calorific value, high electrical conversion efficiency;
3. Pre force screw adopts national standard 12.9 high strength material to ensure no loosening and fracture under high frequency oscillation;
4. The electrode is made of beryllium bronze lead-free solder wire with good conductivity;
5. Full inspection to ensure good product rate;
Use of ultrasonic welding transducer:
The ultrasonic power supply and transducer transmit the ultrasonic energy to the welding area through the upper weldment. Due to the large acoustic resistance at the interface between the two welding areas, local high temperature will be produced. Due to the poor thermal conductivity of plastic, nylon, chemical fiber, non-woven fabric, multilayer cloth, gold cloth and other materials, they can not disperse in time and gather in the welding area, resulting in the rapid melting of the two contact surfaces and the fusion of them after a certain pressure. When the ultrasonic stopped, the pressure continued, and some holding time was allowed to solidify and form a solid molecular chain to achieve the purpose of welding.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500

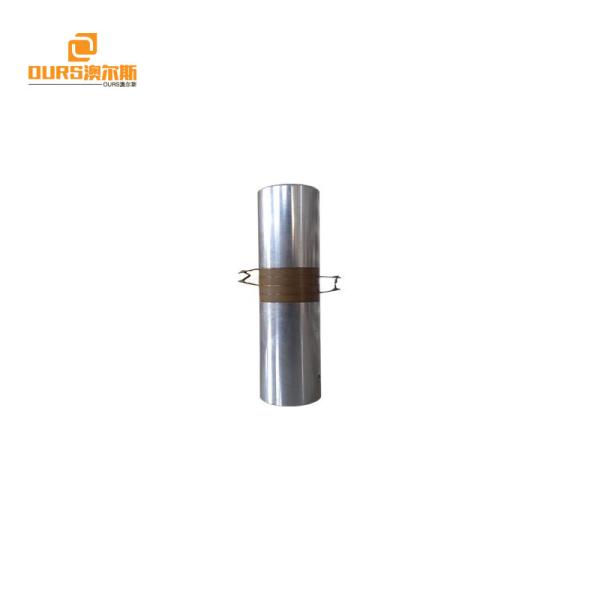

ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200

FCC 20Khz 2000w Ultrasonic Plastic Welder Transducer

20Khz 2000w Ultrasonic Plastic Welding Machine transducer
