ultrasonic fog generator Digital Ultrasonic Generator ultrasonic wave generator

Digital Ultrasonic Generator quick detail
1800w ultrasonic generator for ultrasonic cleaner :
In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry

Digital Ultrasonic Generator product description

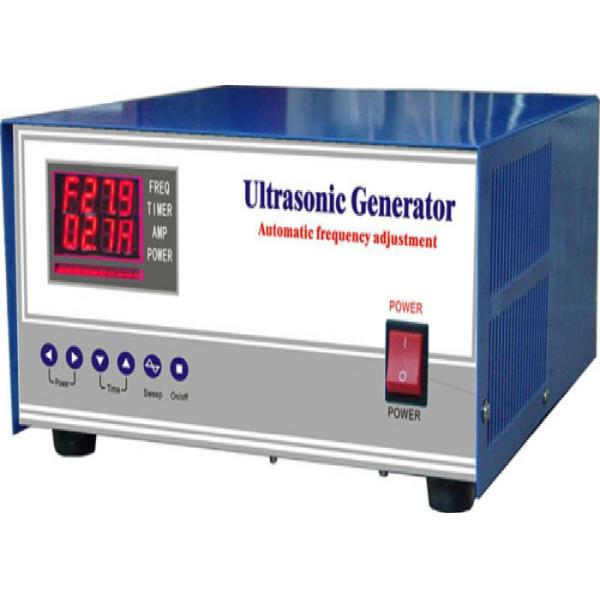

The Sonic Digital LC Basic is very compact table-top unit suitable for use with a manual operating unit. This generator is perfectly solution for applications requiring frequencies from 20 to 40 kHz and power between 400 and 2,000 W

Digital Ultrasonic Generator product Characteristics
Switching working frequency directly by using the buttons on the panel.
Setting two frequency of working time by timer on the panel.
When a certain frequency working time is set to be zero,another frequency still work regularly in normal way.
Ultrasonic generator has the remote control,you can use the PLC and remote cable to control Ultrasonic On/OFF,and the working frequency.
Showing the working state on display panel,such as working time,frequency.current.

Digital Ultrasonic Generator product features
Additional adjustments are not required when replacing the drive
The generator maintains optimal Cavitation and power output to ensure robust Cavitation at the solution's pulsation level
The guarantee of even distribution of sound pressure is the MM (Multi Modulation) function utilized.
Settings and status that can be monitored by the working status
Power, frequency and operating time can pass this rigorous detection display function
Keep the external control unit Mabe convenient for easy on-board communication
Suitable for all common industries
- Specifications
Power supply ac220 V ± 10% Φ1 50 / 60 Hz 2.4 KVA
maximum. Power 1200 watts
Frequency 2840 KHz
Operating mode digital PLL (normal) / small trailing and burst 9steps (mm mode
Display LCD Status / Digital Power Frequency Operating Time
External control signal port (power control display (0 ~ 10vdc on/off contact us) / RS-422 (power, mode, alarm, etc.)
Ambient temperature 5 ~ 40 °C 80% RH
Dimensions 320 Width x 405 Length x 130 Height mm
Weight 7.6 kg
- pay attention
1 year warranty and customer service
Processing time may take 7 – 14 business days
