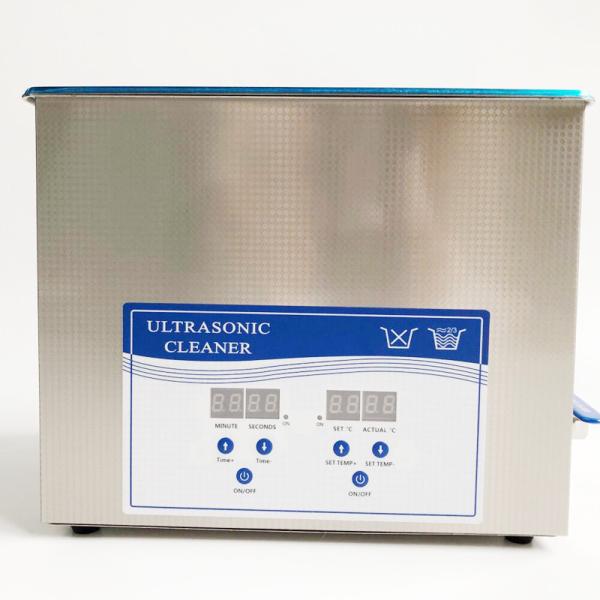

40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag
40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag
40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag
40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag
Specifications
Brand Name :
OURS
Model Number :
ARS-XQXJ-006H
Certification :
CE AND FCC
Place of Origin :
ShenZhen China
MOQ :
1set
Price :
USD155/SET-USD170/SET
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000set
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Volume :
6Liter
FR :
40khz
Voltage :
110V or 220V
Power :
150W
key word :
ultrasonic cleaner
Warranty :
1 year
MOQ :
1 Set
Tank Size :
L x W x H(mm):300x155x150
Time Setting :
0-30 Minute Acceptable
Description

40KHz Ultrasonic Cleaner For PCB Cleaning Remove Flux / Eliminate Water Damage

1. Ultrasound power density selection: Ultrasound power density is selected according to the difficulty of cleaning, general.
The power density of 25-30W/L is chosen for cleaning, and the power density of 30-40W/L is chosen for strengthening cleaning. in addition
Ultrasound power density should also be selected according to the material of the cleaning material. If it is too large, it may make the surface of the cleaning material.
In this case, the ultrasonic cleaner with adjustable power can be selected.
2. Choice of ultrasonic frequency: According to the shape and precision of the cleaning material, choose the frequency of ultrasound. for example
Cleaning general hardware, ceramics, shells, bowls and other cleaning parts need to use low frequency 20 ~ 35KHZ frequency.
Cleaning glasses, jewelry, CD, watches, etc. using medium frequency 35KHZ~80KHZ; Watch parts, hard disk, magnetic head
The high frequency of precision hardware is more than 80KH.
3. Selection of ultrasonic cleaning time: According to the cleanliness of cleaning materials to adjust the cleaning time. It's too short a time.
When it comes to cleaning requirements, it takes too long to waste resources and may damage the cleaning.

APPLICATION RANGES:

DOMESTIC
Jewelry Necklaces, rings, bracelets, earrings etc
Watches and glasses Waterproof wristwatches, watch chains, glasses, sunglasses etc
Toiletry items Electric toothbrush heads, electric shaver heads, razor blades, combs, toothbrushes, dentures etc
Discs CDs, DVDs, DVDs, CD-R discs, laserdisc etc
Office equipment Printed heads, fountain pen nibs, wax or rubber stamps , Calligraphic pens/ nibs etc
Model Tank Size Unit Size Volume Power Ultrasonic Frequency Heating Power Timer Heating
L x W x H(mm) L x W x H(mm) (L) (W) (KHz) (W) (MIN) (℃)
ARS-XQXJ-103H 150x140x65 190x170x185 1.3 50 40 100 1-99 0-80
ARS-XQXJ-002H 150x140x100 190x170x220 2 50 100 1-99 0-80
ARS-XQXJ-003H 240x140x100 270x170x240 3 100 100 1-99 0-80
ARS-XQXJ-006H 300x155x150 330x180x310 6 150 300 1-99 0-80
ARS-XQXJ-010H 300x240x150 330x270x310 9 200 300 1-99 0-80
ARS-XQXJ-013H 355x325x150 360x330x310 13 300 400 1-99 0-80
ARS-XQXJ-020H 530x325x150 550x330x310 20 400 500 1-99 0-80
ARS-XQXJ-027H 530x325x200 550x330x360 27 500 500 1-99 0-80

40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag40KHz Desktop Ultrasonic Cleaner PCB Cleaning Remove Flux / Eliminate Water Damag

40KHz Ultrasonic Cleaner For PCB Cleaning Remove Flux / Eliminate Water Damage
