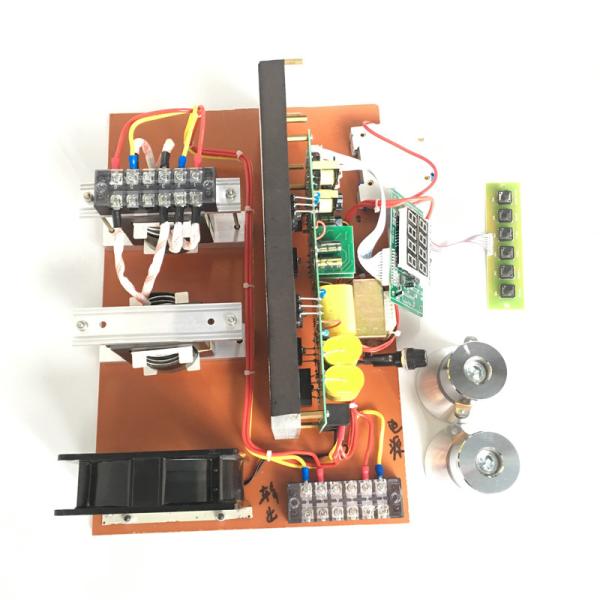

1000 Watt Ultrasonic Transducer Vibrations PCB Generator For Industry Cleaning Machine
1000 Watt Ultrasonic Transducer Vibrations PCB Generator For Industry Cleaning Machine
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DLB600
Certification :
CE and FCC
Place of Origin :
shenzhen china
MOQ :
1set
Price :
USD25-USD220
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
10000
Delivery Time :
1-5days
Packaging Details :
Carton box or plywood box
Power :
200W-3000W
fre :
20-135KHZ
function :
adjustable frequency
Voltage :
110V or 220V
application :
cleaning generator
Description

ultrasonic transducer vibrations PCB generator for Industry cleaning machine 1000Watt 28khz/40khz

1. The maximum power of an electric box can be 6000W. (More power can be customized). It can also be used in parallel with multiple computers. The generator has a synchronous circuit, which can make the parallel effect reach an ideal state.
2. The maximum frequency is within 400 KHZ. (400KHz-1MHz frequency model in development).
3. Do not burn the power drive tube (even if short circuit does not burn the tube).
4. Ultrasound power does not decline. Under the condition of water temperature and load change, power stability is high.
5. High conversion rate of ultrasound. The actual test value can reach 96% or even higher, and the aging water does not heat up for a long time.
6. Simple debugging and easy maintenance.
7. Very low noise, no damage to the transducer. In the case of good bonding of transducer, the machine does not blacken the bottom of cylinder or vibration plate for a long time.
8. Triangular wave energy transfer technology makes the generator and transducer have longer life and the steel plate is not easy to burn through.
9. It has a large capacitor power control circuit, the power is more stable, the strength is stronger, and the spray is more uniform.
10. Maintenance for 18 months (except for force majeure and natural disasters), unconditional replacement of new aircraft due to explosive problems within one year.

Type Frequency Power Dimension
(mm)		 Transducer numbers
ARS-DLB50W 25khz,28khz,33khz,40khz 50W 132×85×45mm 1 piece
ARS-DLB60W 25khz,28khz,33khz,40khz 60W 132×85×45mm 1 piece
ARS-DLB100W 25khz,28khz,33khz,40khz 100W 132×85×45mm 1-2 pieces
ARS-DLB120W 25khz,28khz,33khz,40khz 120W 132×85×45mm 1-2 pieces
ARS-DLB150W 25khz,28khz,33khz,40khz 150W 132×85×45mm 1-3 pieces
ARS-DLB200W 25khz,28khz,33khz,40khz,80khz,100khz,135khz 200W 180×130×60mm 4 pieces
ARS-DLB300W 25khz,28khz,33khz,40khz 300W 180×130×60mm 6 pieces
ARS-DLB400W 25khz,28khz,33khz,40khz 400W 180×130×60mm 8 pieces
ARS-DLB500W 25khz,28khz,33khz,40khz 500W 180×130×60mm 10 pieces
ARS-DLB600W 25khz,28khz,33khz,40khz 600W 180×130×60mm 12 pieces

Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional

Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

1000 Watt Ultrasonic Transducer Vibrations PCB Generator For Industry Cleaning Machine1000 Watt Ultrasonic Transducer Vibrations PCB Generator For Industry Cleaning Machine

ultrasonic transducer vibrations PCB generator for Industry cleaning machine 1000Watt 28khz/40khz
