Food Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khz
Food Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khz
Food Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khz
Food Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khz
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-HJHNQ201500
Certification :
CE and FCC
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
USD150-USD160
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs
Delivery Time :
within 5 days
Packaging Details :
export carton
frequency :
15-40khz
power :
100W-4200W
Output :
Switching Transducer
Usage :
Vibration Sensor
Application :
Plastic Ultrasonic Welding Transducer
type :
1500w ultrasonic welding transducer
Description

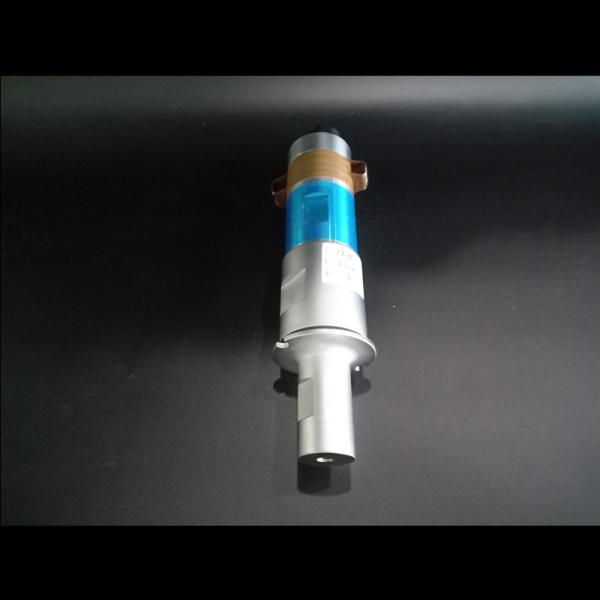

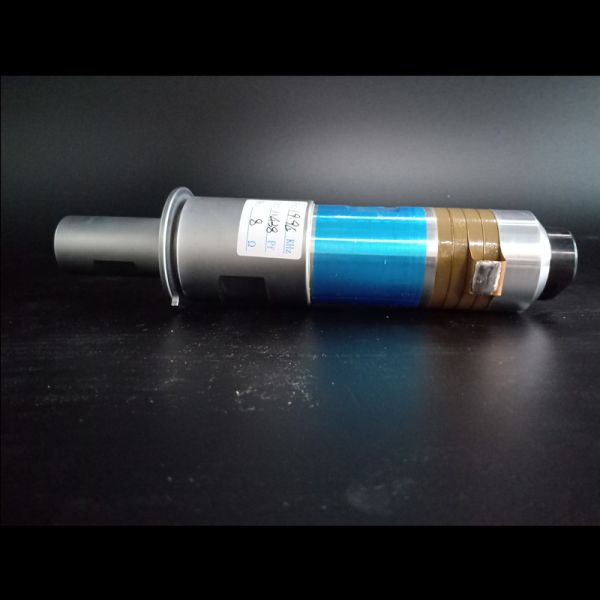

2000W20khz ultrasonic welding transducer Use in food cutting and plastic welding

As the name implies, the ultrasonic horn can change the amplitude of the transducer. Amplifier is a passive device. It does not produce vibration itself. It only changes the amplitude of the input vibration and transmits it out. At the same time, it also completes the impedance transformation. Ultrasound transducer can produce regular vibration under appropriate electric field excitation. Its amplitude is generally about 10 micron. It is not enough to complete welding and processing directly. After connected with a reasonably designed horn, the amplitude of the ultrasonic wave can vary in a wide range. As long as the material strength is enough, the amplitude can exceed 100 microns. We call the whole of the ultrasonic transducer connected with the horn vibrator. It can be said that as long as it is a common oscillator in the market, we all have production, and basically have stock. If customers have special requirements, we can provide products with the same accuracy and reliability as mass production within 15 days, provided we give samples or detailed technical parameters and requirements.

Frequency range: 15KHz-200KHz
Amplitude ratio: 0.2:1-1:15
Material: Alloy Steel, Aluminum and Titanium Alloys
Connecting Screw Hole: Can be designated at will
Surface treatment: blackening, polishing, chromium plating

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500
ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200


Food Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khzFood Cutting / Plastic Welding Waterproof Piezoelectric Transducer 2000W 20khz

2000W20khz ultrasonic welding transducer Use in food cutting and plastic welding
