Stainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty Equipment
Stainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty Equipment
Stainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty Equipment
Stainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty Equipment
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
60W
Frequency :
40khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4
Static Capacity :
4200(pF)±10%
Description

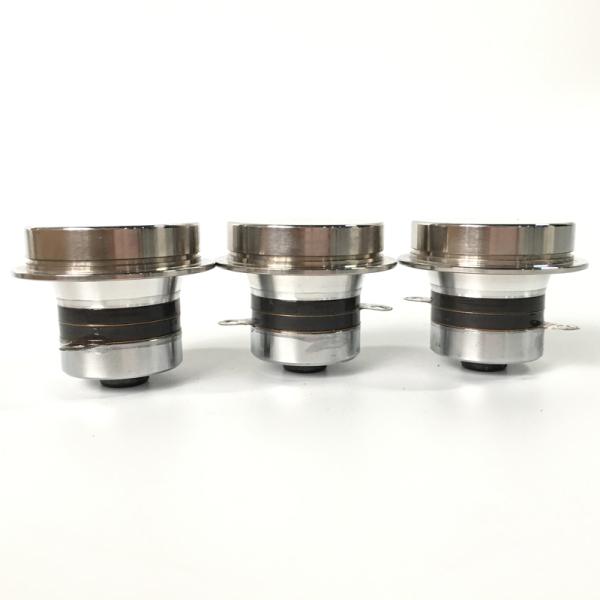

40khz ultrasonic beauty transducer for ultrasonic face lift beauty equipment

The transducer is the core component of the ultrasonic cleaning equipment, whose parameter characteristics determine the performance of the whole equipment. In addition to the magnetostrictive structure, the ultrasonic transducer is commonly used as a sandwich transducer, which converts high-frequency electrical signals into mechanical vibration. The quality of the transducer depends on the material and manufacturing process. The performance and service life of the same transducer from different manufacturers are very different. Therefore, it is very important to select professional transducer manufacturers.

Transducer is the piezoelectric effect of piezoelectric ceramics, which realizes the conversion of electrical energy to mechanical energy (acoustic vibration), and enlarges the device by matching the radiation cover before and after acoustic impedance. Ultrasound cleaning is an instantaneous high-pressure cavitation bubble generated by the ultrasonic vibration generated by the transducer, which causes cavitation effect in water. The dirt on the surface of the cleaning object will be peeled off quickly to achieve the cleaning effect. The advantages of ultrasonic cleaning are high cleanliness, good cleaning effect and complete scale removal.

Type Frequency Power Pedestal Material
ARS-MR4050 40khz 50W have Stainless steel, aluminium, titanium alloy
Customized production

Stainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty EquipmentStainless Steel Ultrasonic Cleaning Transducer For Face Lift Beauty Equipment

40khz ultrasonic beauty transducer for ultrasonic face lift beauty equipment
