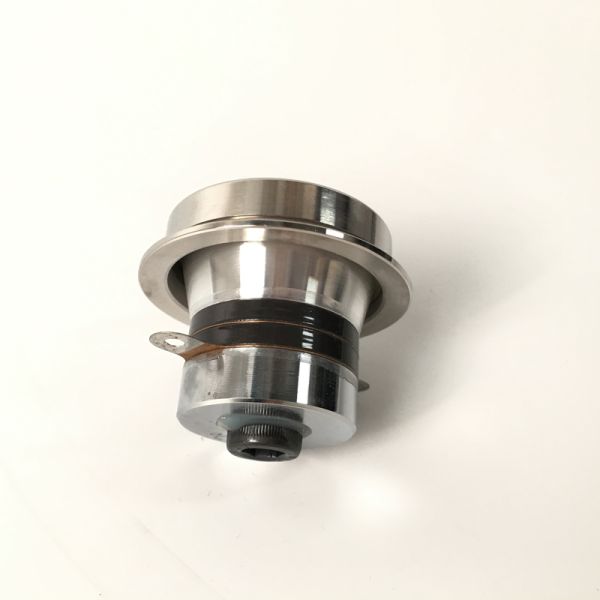

Small Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager Applied
Small Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager Applied
Small Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager Applied
Small Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager Applied
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
60W
Frequency :
40khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4
Static Capacity :
4200(pF)±10%
Description

ultrasonic beauty transducer for ultrasonic beauty massager

This specification product is known as "ultrasonic transducer", commonly known as "ultrasonic oscillator" or "ultrasonic oscillator". For the application of ultrasonic cleaning, it is called "ultrasonic cleaning transducer".

Ultrasound cleaning transducer generally adopts horn-shaped composite array structure (belongs to Rangevin oscillator structure), which consists of front and rear metal cover plate, piezoelectric ceramic wafer, prestressing screw, electrode plate, and insulating sleeve. With proper prestressing force, the transducer has good electromechanical conversion efficiency under the condition of high power and high amplitude.
Ultrasound cleaning is precisely through the transducer generated by the ultrasonic vibration, cavitation effect in the water produced by the instantaneous high-pressure cavitation, impact the cleaned object and achieve good cleaning effect.


Ultrasound cleaning transducer is a kind of medium power transducer which works continuously. Usually, the average value of continuous work is used to calculate and constant its power.

9. Variety (17KHZ-200KHZ), to meet different needs.

Type Frequency Power Pedestal Material
ARS-MR4050 40khz 50W have Stainless steel, aluminium, titanium alloy
Customized production

Small Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager AppliedSmall Size Piezoelectric Transducer Ultrasound 40khz Beauty Massager Applied

ultrasonic beauty transducer for ultrasonic beauty massager
