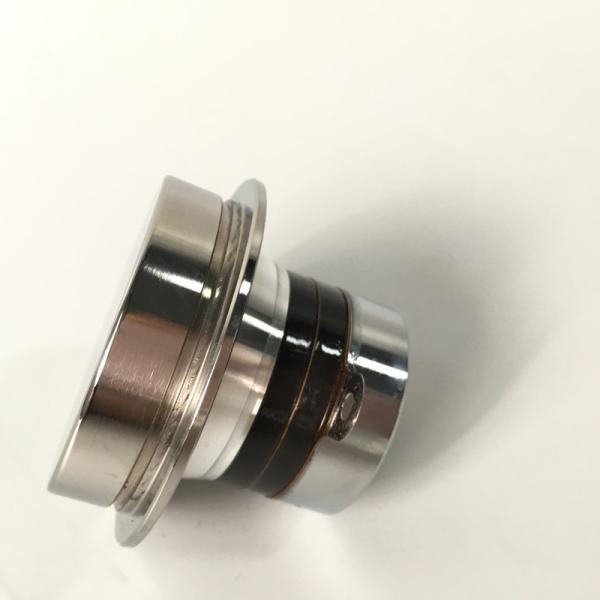

PZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty Appliance
PZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty Appliance
PZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty Appliance
PZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty Appliance
Specifications
Brand Name :
Ours
Model Number :
ARS-QXHNQ13550 PZT-4
Certification :
CE and FCC
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
USD11/PCS-USD13/PCS
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Power :
60W
Frequency :
40khz ultrasonic transducer
Usage :
Ultrasonic cleaning machine
Material :
Stainless Steel
Size :
54*36*35mm
Weight :
215g
Piezoceramic :
PZT-4
Static Capacity :
4200(pF)±10%
Description

beauty ultrasonic transducer 40khz for face ultrasonic facial beauty appliance

Transducer, also known as oscillator, is a device that converts electrical energy to mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies it by radiation cover blocks matched with acoustic impedance.
Ultrasound cleaning is a kind of ultrasonic vibration generated by transducer. The instantaneous high-pressure cavitation produced by cavitation effect in water impacts the cleaned material and achieves a good cleaning effect.
Ultrasound cleaning transducer generally adopts horn and cylindrical composite array structure, which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressing screw, electrode sheet, and insulating sleeve. With proper prestressing force, the transducer has good electromechanical conversion efficiency under the condition of high power and high amplitude.
Ultrasound cleaning transducer is a kind of medium power transducer which works continuously. Usually, the average value of continuous work is used to calculate and constant its power.

1. Low resonant impedance
2. High Q value of machinery
3. High efficiency of electro-acoustic conversion.
4. Good thermal stability
5. Low calorific value
6. Good consistency of frequency and static capacitance.
7. Large amplitude and high velocity
The product is complete in variety and can be widely used in various ultrasonic cleaning equipment.

Explosive fat ultrasonic transducer, high energy conversion value, not easy to aging, long service life, commonly used models are: 28KHZ/50W, 60W; 40KHZ/50W, 60W. Product quality assurance, the most popular beauty friends.

Type Frequency Power Pedestal Material
ARS-MR4050 40khz 50W have Stainless steel, aluminium, titanium alloy
Customized production

PZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty AppliancePZT-4 Piezoceramic Ultrasonic Cleaning Transducer 40khz For Facial Beauty Appliance

beauty ultrasonic transducer 40khz for face ultrasonic facial beauty appliance
