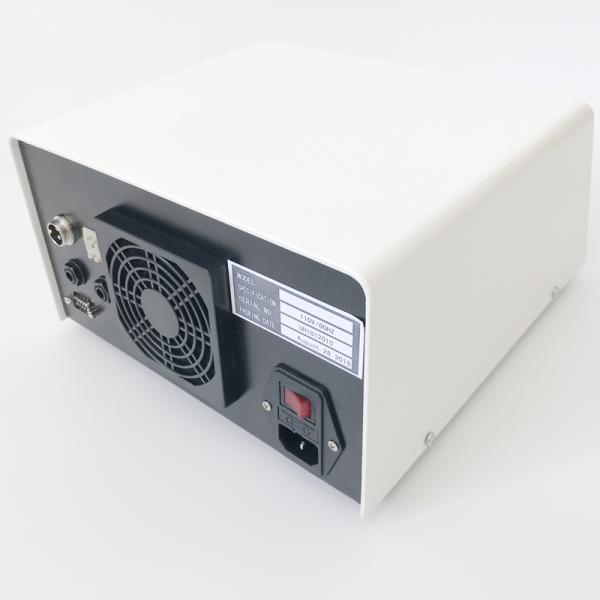

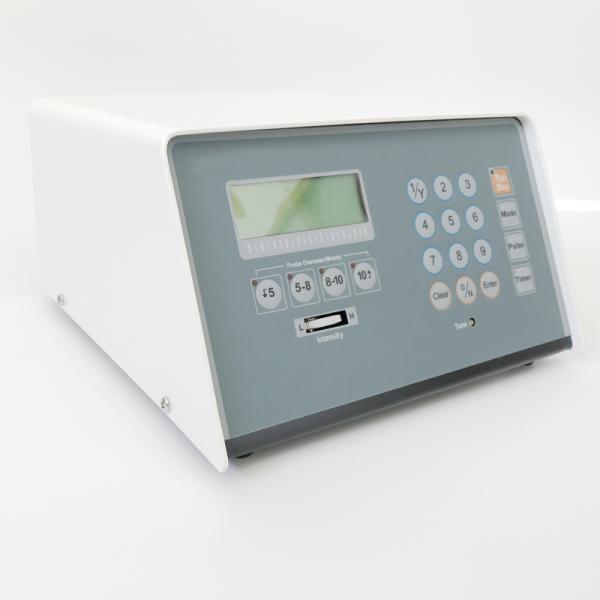

ultrasonic homogenizer sonicator for 20khz branson ultrasonic homogenizer 500W/800W

Main functions:

1. Automatic Resonance Point and Power Control Needs Frequent Manual Energy Regulation

2.99 hours process control timer controls the total working time; from 1 second to 99 hours, the current running task is suspended in real time

3. The working hours show a cumulative state.

4. On/off pulse timer

Ensure that temperature sensitive samples are treated with high strength, and the open and close cycles can be set from 1 second to 99 minutes.

5. Automatic amplitude compensation ensures that the probe's amplitude does not change with the change of load during the ultrasonic process.

6. Simple menu operation, direct typing

Main applications:

1. Extraction of traditional Chinese medicine, breakage of cells, bacteria and viral tissues. For example, extraction of intracellular contents.

2. Dispersion and homogenization of material particles and emulsification of products. For example, the dispersion of nanomaterials.

3. Accelerate dissolution and chemical reaction. For example, it is used in chemical synthesis.

Technical parameter table of ultrasonic processor:

1. Power/Signal Generator: Model FS-150N Net Power Output; 80 W Frequency; 20KHZ Net Weight: 4kg

Timer: LCD screen, 1 second - 99 hours adjustable power regulation: 0% - 100%, pulse: digital,

Closed-loop, open-loop: 1 second to 99 minutes selection settings

2. Piezoelectric Frequency Converter: CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics

Diameter: 35mm length: 155mm weight: 190g cable length: 150cm

3. Standard configuration probe: Titanium alloy material: TI-6AL-4V

Head diameter (random probe): 3mm, processing capacity: 1ml-50ml total length: 118mm weight: 50g

4. Power supply: 220V/50HZ

5. Optional accessories: 2,3,6,8,10 mm probe, 500-50 ml temperature sensor: 0-300 degrees

6. Gift accessories: ABS plastic sound insulation box, stainless steel lifting platform.
