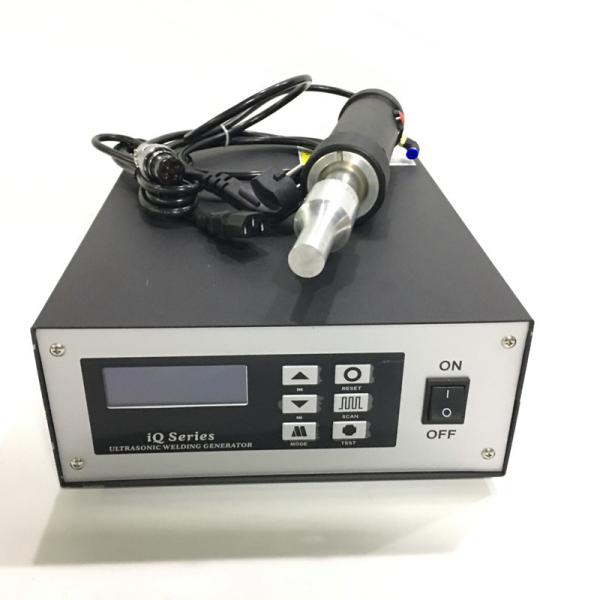

Portable Spot Ultrasonic Welding Machine 20khz 300W High Voltage Electric Energy
Portable Spot Ultrasonic Welding Machine 20khz 300W High Voltage Electric Energy
Specifications
Brand Name :
Ours
Model Number :
ARS-SLHJ-3200W15
Certification :
CE AND FCC
Place of Origin :
ShenZhen China
MOQ :
1set
Price :
USD3900/SET-USD4100/SET
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
10000set
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Machine power :
3200W
voltage :
110v or 220V
Tool head :
no have
FR :
15KHZ
Customiazaion :
Accepted
Usage :
Plastic Welding
OEM :
Acceptable
Package Weight :
150kg
Description

20khz 300W portable ultrasonic spot welding machine for Handheld Ultrasonic plastic Welder

The new generation of intelligent automatic frequency chasing waterproof plate ultrasonic welding machine, also known as ultrasonic waterproof plate hot melt gasket (ring) welding machine, is suitable for the riveting, spot welding and positioning of new secondary lining waterproof plate paving equipment for thermoplastic products such as PE, HDPE, LDPE, PVC, EVA, ECB, PP, PPR tunnel waterproof plate and hot melt gasket (ring).

Waterproof board ultrasonic welding machine converts 220V, 50Hz current into 20KHz high voltage electric energy through ultrasonic generator. Then the electric energy is transformed into ultrasonic energy through the ultrasonic transducer (i.e. the high frequency mechanical vibration energy whose frequency exceeds the human ear hearing). The energy is transmitted vertically to the waterproof board through the welding head, which melts the joint surface of the plastic waterproof board after severe friction with tens of thousands of ultrasonic frequencies and certain amplitudes per second. The transient pressure maintained on the workpiece after vibration stops makes the plastic waterproof board and hot melt gasket solidify as a whole by molecular linkage. Generally, the welding time is less than 2 seconds, and the welding strength obtained is comparable to that of the body.

Type Power(W) Frequency (KHz)
ARS-SLHJ-1500W15 1500W 15KHZ
ARS-SLHJ-1500W20 1500W 20KHZ
ARS-SLHJ-1800W15 1800W 15KHZ
ARS-SLHJ-1800W20 1800W 20KHZ
ARS-SLHJ-2000W15 2000W 15KHZ
ARS-SLHJ-2600W15 2600W 15KHZ
ARS-SLHJ-2600W20 2600W 20KHZ
ARS-SLHJ-3200W15 3200W 15KHZ
ARS-SLHJ-4200W15 4200W 15KHZ

Portable Spot Ultrasonic Welding Machine 20khz 300W High Voltage Electric EnergyPortable Spot Ultrasonic Welding Machine 20khz 300W High Voltage Electric Energy

20khz 300W portable ultrasonic spot welding machine for Handheld Ultrasonic plastic Welder
