28khz Industrial Ultrasonic Cleaner Blind Ceramic Anilox Roller Cleaning Machine
28khz Industrial Ultrasonic Cleaner Blind Ceramic Anilox Roller Cleaning Machine
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DQXJ-1024
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1SET
Price :
USD1280-USD1680
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
2000set month
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Condition :
new
power :
300w-3000w
Voltage :
110V and 220V
FR :
17khz-200khz
Machine Type :
Industrial Ultrasonic Cleaner
Description

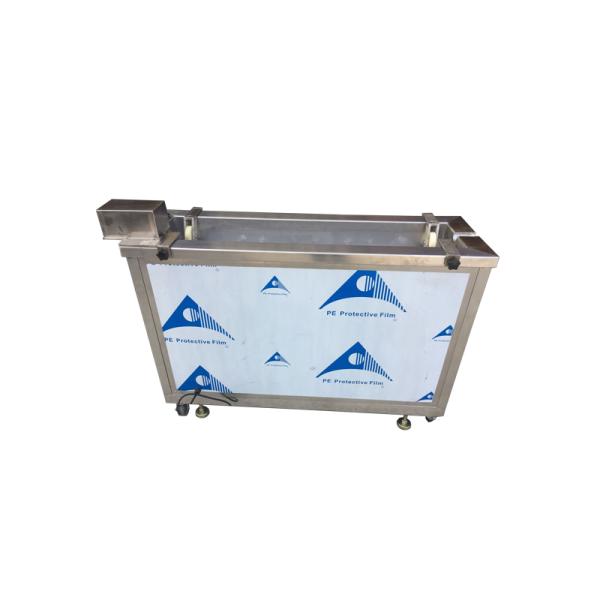

28khz Ultrasonic Blind Ceramic Anilox Roller Cleaning Machine

Operation of anilox roll ultrasonic cleaning machine
Due to the characteristics of water-based ink, many manufacturers use ultrasonic cleaning to adopt a pre soaking method to soften the dry ink residue in the mesh, and then carry out ultrasonic treatment.

The pre soaking solution is specially prepared with high pH, which helps to soften the ink dregs. The acoustic wave level during ultrasonic treatment can be reduced and the cleaning effect can be achieved without damaging the mesh. And it can shorten the ultrasonic emission time by 80% ~ 90%
During cleaning, the anilox roll rotates slowly, and the high-frequency ultrasonic transducer in the liquid pool begins to vibrate. Because of this kind of vibration and the continuous rotation of the roll body, the tiny bubbles in the liquid constantly approach the roll body, and continuously produce burst and vibration. Under the effect of ultrasonic, the roll body and the ink slag hidden in the deep of the mesh hole are constantly impacted, which makes the ink slag in the mesh hole constantly shake Fall off, so as to achieve the purpose of cleaning

Type Internal size
L*W*H (mm)		 Outsize mm
L*W*H (mm)		 Frequency (Khz)

Power
(W)

Heating
(W)

 Total power(W) voltage
ARS-DQXJ-1006 280×210×210 320×250×350 20,28,33,40,80,130 300 1000 1300 220V
ARS-DQXJ-1012 400×310×280 520×430×600 20,28,33,40,80,130 600 3000 3600 220V
ARS-DQXJ-1018 490×360×320 610×480×675 20,28,33,40,80,130 900 3000 3900 220V
ARS-DQXJ-1024 630×430×320 740×550×675 20,28,33,40,80,130 1200 4000 5200 220V
ARS-DQXJ-1030 630×530×320 750×650×675 20,28,33,40,80,130 1500 4000 5500 220V
ARS-DQXJ-1036 680×530×360 800×650×700 20,28,33,40,80,130 1800 5000 6800 220V
ARS-DQXJ-1040 680×570×400 830×710×735 20,28,33,40,80,130 2000 5000 7000 220V
ARS-DQXJ-1041 730×570×450 880×710×735 20,28,33,40,80,130 2400 6000 8400 220V
ARS-DQXJ-1042 790×670×510 940×765×785 20,28,33,40,80,130 3000 6000 9000 380V
ARS-DQXJ-1043 850×770×570 990×820×785 20,28,33,40,80,130 4000 7000 11000 380V
ARS-DQXJ-1044 910×820×620 1050×880×840 20,28,33,40,80,130 5000 7000 12000 380V
ARS-DQXJ-1045 960×870×680 1100×940×920 20,28,33,40,80,130 8000 8000 16000 380V
ARS-DQXJ-1046 1100×930×730 1160×1000×980 20,28,33,40,80,130 10000 8000 18000 380V


28khz Industrial Ultrasonic Cleaner Blind Ceramic Anilox Roller Cleaning Machine

28khz Ultrasonic Blind Ceramic Anilox Roller Cleaning Machine
