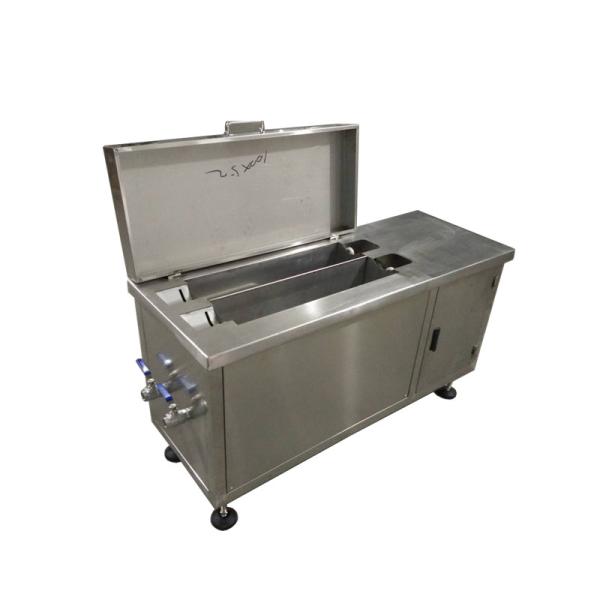

40khz Ultrasonic Engine Cleaner Aanilox Roller Cleaning Machine For Flexo Printing
40khz Ultrasonic Engine Cleaner Aanilox Roller Cleaning Machine For Flexo Printing
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DQXJ-1024
Certification :
CE AND FCC
Place of Origin :
China
MOQ :
1SET
Price :
USD1280-USD1680
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
2000set month
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Machine Type :
Industrial Ultrasonic Cleaner
power :
300w-3000w
Voltage :
110V and 220V
FR :
17khz-200khz
Use :
Degreasing
Industry used :
Electronic Industry,Auto Industry
Description

40khz Ultrasonic Aanilox Roller Cleaning Machine For Flexo Printing

Although anilox roll is different from metal roll and ceramic roll, it is used to store ink by fine mesh holes. Taking the ordinary 600L / ICH anilox roll as an example, its mesh hole diameter is about 30 microns, so it is difficult for ordinary cleaning tools to have such a small mesh hole for cleaning; while the diameter of bubbles produced by ultrasonic is about 2-5 microns, and 6-15 bubbles can be entered simultaneously in a single mesh hole Hit the dirt at the bottom of the mesh hole, so as to achieve the purpose of thorough cleaning, which is not comparable to other cleaning methods. At present, ultrasonic cleaning machine is widely used in the cleaning of micro holes in the world.

Type Internal size
L*W*H (mm)		 Outsize mm
L*W*H (mm)		 Frequency (Khz)

Power
(W)

Heating
(W)

 Total power(W) voltage
ARS-DQXJ-1006 280×210×210 320×250×350 20,28,33,40,80,130 300 1000 1300 220V
ARS-DQXJ-1012 400×310×280 520×430×600 20,28,33,40,80,130 600 3000 3600 220V
ARS-DQXJ-1018 490×360×320 610×480×675 20,28,33,40,80,130 900 3000 3900 220V
ARS-DQXJ-1024 630×430×320 740×550×675 20,28,33,40,80,130 1200 4000 5200 220V
ARS-DQXJ-1030 630×530×320 750×650×675 20,28,33,40,80,130 1500 4000 5500 220V
ARS-DQXJ-1036 680×530×360 800×650×700 20,28,33,40,80,130 1800 5000 6800 220V
ARS-DQXJ-1040 680×570×400 830×710×735 20,28,33,40,80,130 2000 5000 7000 220V
ARS-DQXJ-1041 730×570×450 880×710×735 20,28,33,40,80,130 2400 6000 8400 220V
ARS-DQXJ-1042 790×670×510 940×765×785 20,28,33,40,80,130 3000 6000 9000 380V
ARS-DQXJ-1043 850×770×570 990×820×785 20,28,33,40,80,130 4000 7000 11000 380V
ARS-DQXJ-1044 910×820×620 1050×880×840 20,28,33,40,80,130 5000 7000 12000 380V
ARS-DQXJ-1045 960×870×680 1100×940×920 20,28,33,40,80,130 8000 8000 16000 380V
ARS-DQXJ-1046 1100×930×730 1160×1000×980 20,28,33,40,80,130 10000 8000 18000 380V


40khz Ultrasonic Engine Cleaner Aanilox Roller Cleaning Machine For Flexo Printing

40khz Ultrasonic Aanilox Roller Cleaning Machine For Flexo Printing
