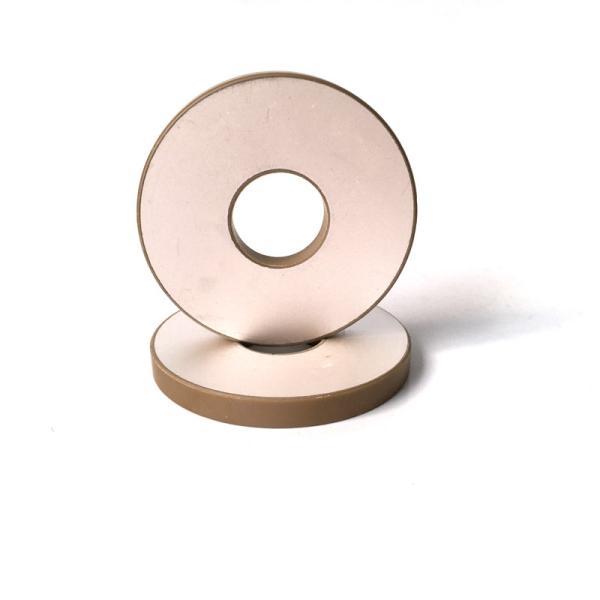

44khz Pzt-4 Ultrasonic Cleaning Transducer 35mm Piezo Ceramic Ring Disc Shap
44khz Pzt-4 Ultrasonic Cleaning Transducer 35mm Piezo Ceramic Ring Disc Shap
44khz Pzt-4 Ultrasonic Cleaning Transducer 35mm Piezo Ceramic Ring Disc Shap
44khz Pzt-4 Ultrasonic Cleaning Transducer 35mm Piezo Ceramic Ring Disc Shap
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-TYJP
Certification :
CE AND FCC
Place of Origin :
Shenzhen,China
MOQ :
100pcs
Price :
USD3-USD30
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
material :
barium titanate
Pric :
based on quantity
Material :
Zirconium Oxide
OEM :
yes
Shap :
disc
certificate :
ISO90001
model :
Piezoelectric Ceramic Materials
type :
Piezoelectric Ceramic Materials fish
Description

35mm piezo ceramic ring 44khz pzt-4 ultrasonic cleaning transducer

Piezoelectric ceramics have a wide range of applications in our daily production and life. The first choice for piezoelectric ceramics production is to choose a professional manufacturer with a piezoelectric ceramic R & D team. The electronics fully meet your needs, and can be customized according to the special needs of customers.

Specifications Dimension
(mm)		 Radial frequency
(KHz)		 Capacitance
(pf)		 Dielectric dissipation factor
tanδ(%)		 Electromechanical coupling coefficient
(Kr)		 Impedance
Zr(Ω)		 Thickness frequency
(KHz)		 Mechanical
quality factor
(Qm)
ARS-YHJP-25103 Φ25×Φ10×3 66.4 1240±12.5% ≤0.3 ≥0.46 ≤15 683±5% 800
ARS-YHJP-225104 Φ25×Φ10×4 66.4 930±12.5% ≤0.3 ≥0.46 ≤15 512±5% 800
ARS-YHJP-40155 Φ40×Φ12×5 45.9 2070±12.5% ≤0.3 ≥0.46 ≤15 410±5% 800
ARS-YHJP-40155 Φ40×Φ15×5 42.2 1960±12.5% ≤0.3 ≥0.46 ≤15 323±5% 500
ARS-YHJP-40176 Φ40×Φ17×6 40.5 1555±12.5% ≤0.3 ≥0.46 ≤15 341±5% 800
ARS-YHJP-40205 Φ40×Φ20×5 37.9 1700±12.5% ≤0.3 ≥0.47 ≤15 410±5% 800
ARS-YHJP-50206 Φ50×Φ20×6 33.2 2490±12.5% ≤0.3 ≥0.46 ≤15 341±5% 500
ARS-YHJP-501765 Φ50×Φ17×6.5 34.8 2430±12.5% ≤0.3 ≥0.46 ≤15 315±5% 800
ARS-YHJP-50236 Φ50×Φ23×6 31.2 2340±12.5% ≤0.3 ≥0.47 ≤15 341±5% 800
ARS-YHJP-50276 Φ50×Φ27×6 29.3 2100±12.5% ≤0.3 ≥0.47 ≤15 341±5% 800
ARS-YHJP-603010 Φ60×Φ30×10 25.3 1922±12.5% ≤0.3 ≥0.47 ≤18 205±5%

800

35mm piezo ceramic ring 44khz pzt-4 ultrasonic cleaning transducer
