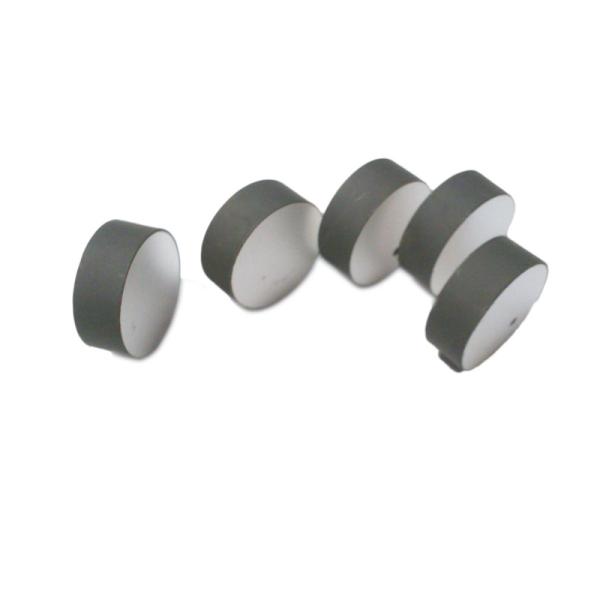

16MM Ceramic Sensor Piezo Disk 2.5mhz Ultrasonic Piezoelectric Transducer Durable
16MM Ceramic Sensor Piezo Disk 2.5mhz Ultrasonic Piezoelectric Transducer Durable
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-TYJP
Certification :
CE AND FCC
Place of Origin :
Shenzhen,China
MOQ :
100pcs
Price :
USD3-USD30
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
material :
barium titanate
Pric :
based on quantity
OEM :
yes
certificate :
ISO90001
model :
Piezoelectric Ceramic Materials
type :
Piezoelectric Ceramic Materials fish
Description

16MM Ceramic Sensor Piezo Disk 2.5mhz Ultrasonic Piezoelectric Transducer

Commonly used piezoelectric ceramics are barium titanate system, lead zirconate titanate binary system and the addition of a third type of ABO3 (a represents divalent metal ions, B represents tetravalent metal ions or the sum of several ions is positive tetravalent) compounds in the binary system, such as the ternary system composed of Pb (Mn1 / 3Nb2 / 3) O3 and Pb (CO1 / 3Nb2 / 3) O3. If the fourth or more compounds are added to the ternary system, the piezoelectric ceramics of the quaternary system or the multi-component system can be formed. In addition, there is also a kind of metaniobate piezoelectric ceramics, such as sodium potassium metaniobate (na0.5 · K0.5 · NbO3) and barium strontium metaniobate (Bax · sr1-x · Nb2O5). They do not contain toxic lead, which is beneficial to environmental protection.

spec
dimension
(mm)
Thickness Frequency
ft (KHz)
Radial Frequency
fs(KHz)
Capaciatance
C (pf)
Impedance
Zt (Ω)
K33(%)
Kp(%)
ARS-YPJP-1930
Ø19×3.0
215±2%
877±12.5%
≥50
ARS-YPJP-2585
Ø25×8.5
235±2%
650±12.5%
≤45
≥58
ARS-YPJP-2510
Ø25×10
200±2%
550±12.5%
≤45
≥58
ARS-YPJP-27489
Ø27.4×8.9
215±2%
1230±12.5%
≤45
≥59
ARS-YPJP-27410
Ø27.4×10
200±2%
665±12.5%
≤45
≥58
ARS-YPJP-43510
Ø43.5×10
200±2%
50±1
1430±12.5%
≤25
≥53
≥50
ARS-YPJP-4596
Ø45×9.6
200±2%
50±1
3076±12.5%
≤45
≥59
≥60
ARS-YPJP-4510
Ø45×10
200±2%
50±1
1790±12.5%
≤25
≥58
≥54
ARS-YPJP-605
Ø60×5
420±2%
5250±12.5%
≤15
≥53
ARS-YPJP-54910
Ø54×Ø9×10
207±2%
2070±12.5%
≤45
≥53

16MM Ceramic Sensor Piezo Disk 2.5mhz Ultrasonic Piezoelectric Transducer Durable

16MM Ceramic Sensor Piezo Disk 2.5mhz Ultrasonic Piezoelectric Transducer
