High Energy Piezoelectric Film Disks Plates , Piezoelectric Material Hydrophone Sensor
High Energy Piezoelectric Film Disks Plates , Piezoelectric Material Hydrophone Sensor
Specifications
Brand Name :
OURS Ultrasonic
Model Number :
ARS-TYJP
Certification :
CE AND FCC
Place of Origin :
Shenzhen,China
MOQ :
100pcs
Price :
USD3-USD30
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
1000000pcs
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
material :
barium titanate
Pric :
based on quantity
Material :
Zirconium Oxide
OEM :
yes
Shap :
disc
certificate :
ISO90001
model :
Piezoelectric Ceramic Materials
type :
Piezoelectric Ceramic Materials fish
Description

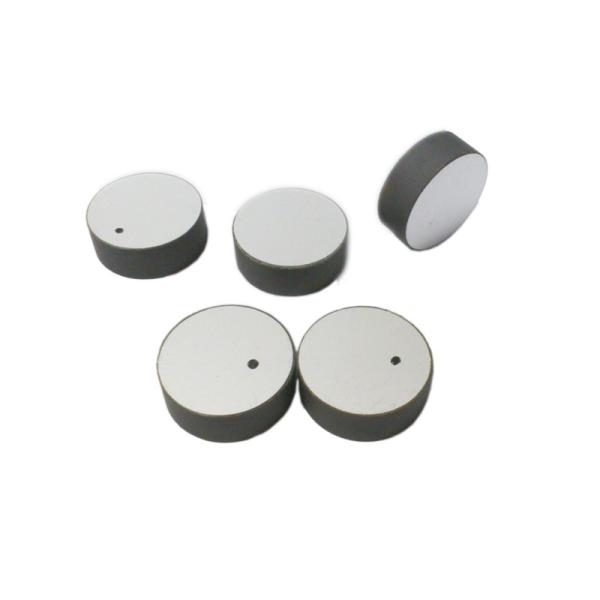

High energy piezoelectric film disks plates piezoelectric material hydrophone sensor

Piezoelectric ceramic material has good piezoelectricity, high mechanical strength, high coercive field and low dielectric loss. It is mainly used for ultrasonic cleaning, strong ultrasonic drilling, ultrasonic welding, dental cleaner probe, beauty instrument probe, ultrasonic scalpel probe, cardiovascular therapeutic instrument probe, etc.

spec
dimension
(mm)
Thickness Frequency
ft (KHz)
Radial Frequency
fs(KHz)
Capaciatance
C (pf)
Impedance
Zt (Ω)
K33(%)
Kp(%)
ARS-YPJP-1930
Ø19×3.0
215±2%
877±12.5%
≥50
ARS-YPJP-2585
Ø25×8.5
235±2%
650±12.5%
≤45
≥58
ARS-YPJP-2510
Ø25×10
200±2%
550±12.5%
≤45
≥58
ARS-YPJP-27489
Ø27.4×8.9
215±2%
1230±12.5%
≤45
≥59
ARS-YPJP-27410
Ø27.4×10
200±2%
665±12.5%
≤45
≥58
ARS-YPJP-43510
Ø43.5×10
200±2%
50±1
1430±12.5%
≤25
≥53
≥50
ARS-YPJP-4596
Ø45×9.6
200±2%
50±1
3076±12.5%
≤45
≥59
≥60
ARS-YPJP-4510
Ø45×10
200±2%
50±1
1790±12.5%
≤25
≥58
≥54
ARS-YPJP-605
Ø60×5
420±2%
5250±12.5%
≤15
≥53
ARS-YPJP-54910
Ø54×Ø9×10
207±2%
2070±12.5%
≤45
≥53

High Energy Piezoelectric Film Disks Plates , Piezoelectric Material Hydrophone Sensor

High energy piezoelectric film disks plates piezoelectric material hydrophone sensor
