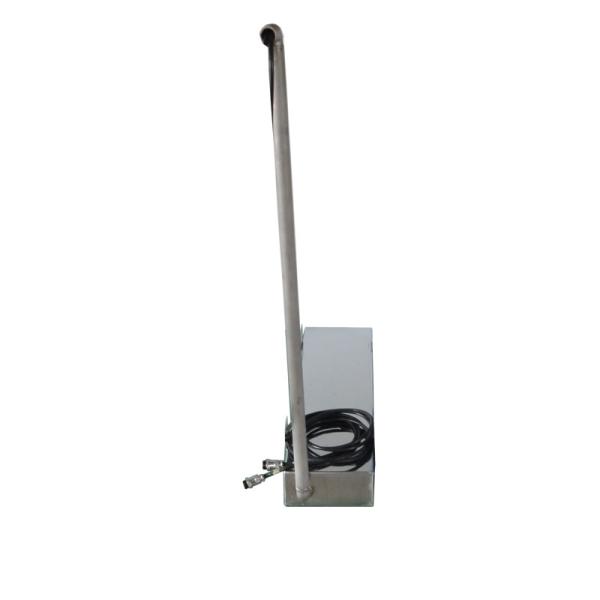

SS High Frequency Ultrasonic Transducer , Submersible Ultrasonic Cleaner Vibration Plate
SS High Frequency Ultrasonic Transducer , Submersible Ultrasonic Cleaner Vibration Plate
Specifications
Brand Name :
OURS
Model Number :
ARS-ZBH2000W
Certification :
CE AND FCC
Place of Origin :
shenzhen china
MOQ :
1set
Price :
USD1100/SET-USD1390/SET
Payment Terms :
T/T, Western Union, PAYPAL
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Diamention :
650*450*100mm
Ultrasonic Transducer :
40 pcs
Frequency :
25khz,28khz,33khz,40khz,80khz,130khz
Machine Material :
Stainless Steel SUS 304L / SUS 316L
Size :
customer designed
Condition :
New
Customized :
Acceptable
Description

Immersible Ultrasonic Vibration Plate for industry cleaning 40khz

1. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is a flexible ultrasonic cleaning device, which is composed of ultrasonic transducer, ultrasonic vibration box and ultrasonic generator, which is bonded and sealed in the stainless steel box and put into the existing cleaning container of the customer; 2. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is composed of ultrasonic transducer, ultrasonic vibration box and ultrasonic generator 3. Application fields of 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate: cleaning before plating of electronic parts, electroplating parts, clock parts, hardware mechanical parts, valves, flanges, pipe fittings, auto parts, watch belts, spinneret filter elements, polyester filter elements, semiconductor silicon chips, tools, optics, lenses, spectacle frames, jewelry, glassware, etc/ Descaling / dedusting cleaning 4. Add vibration plate device in the existing cleaning tank, refit it into ultrasonic cleaning machine or increase the power of the original ultrasonic cleaning machine, which can save the cost of customers Features of Juhe brand 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate: 1. The thickened corrosion-resistant ultrasonic vibration plate of 316 stainless steel adopts a split structure, and the high-frequency connection with a socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance. 2. The thickened corrosion-resistant ultrasonic vibration plate of 316 stainless steel is matched with imported high-Q high-power ultrasonic transducer with strong power and obvious cleaning effect 3. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is made of 2.0 ~ 2.5mm-thick high-quality 304 stainless steel, which is acid and alkali resistant, beautiful and durable; 4. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate has excellent water-proof, high-temperature resistance and long service life; 5. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate can be made into three types: bottom shock type, side shock type and top shock type, which can be installed flexibly according to needs To meet different cleaning requirements.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
ARS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
ARS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
ARS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
ARS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
ARS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
ARS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
ARS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
ARS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
ARS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
ARS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

SS High Frequency Ultrasonic Transducer , Submersible Ultrasonic Cleaner Vibration Plate

Immersible Ultrasonic Vibration Plate for industry cleaning 40khz
