Stainless Steel Ultrasonic Transducer Generator Submersible 40/50khz For Industry
Stainless Steel Ultrasonic Transducer Generator Submersible 40/50khz For Industry
Specifications
Brand Name :
OURS
Model Number :
ARS-ZBH2000W
Certification :
CE AND FCC
Place of Origin :
shenzhen china
MOQ :
1set
Price :
USD1100/SET-USD1390/SET
Payment Terms :
T/T, Western Union, PAYPAL
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
Diamention :
650*450*100mm
Ultrasonic Transducer :
40 pcs
Frequency :
25khz,28khz,33khz,40khz,80khz,130khz
Machine Material :
Stainless Steel SUS 304L / SUS 316L
Size :
customer designed
Condition :
New
Customized :
Acceptable
Description

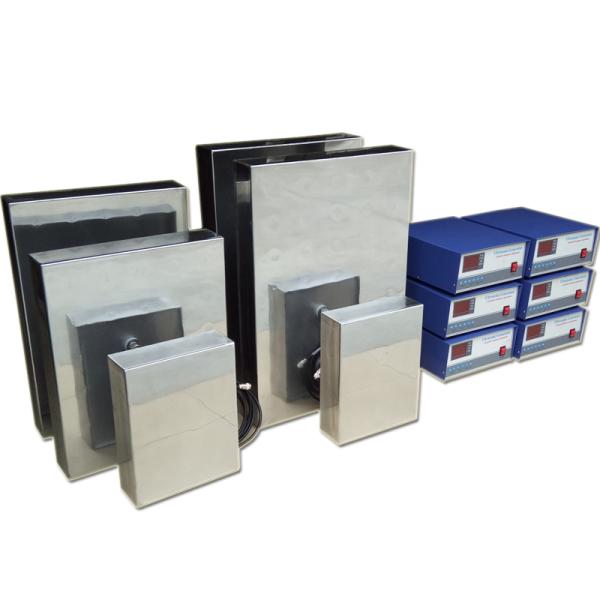

Stainless Steel Submersible Ultrasonic Transducer for industry 40khz/50khz

Features of ultrasonic vibration plate:
The ultrasonic vibration plate made of special technology and material has the characteristics of high stability and long service life, as follows:
1. The transducer specially designed and carefully processed has excellent performance and good consistency. The conversion efficiency of small signal electroacoustic can reach over 96%.
2. The bonding process of the first-class transducer and the monitoring range plate of the bottom mobile phone card monitor can ensure that there is no degumming and the transmission path of the sound wave is unobstructed.
3. Excellent high temperature resistance enables the vibration plate to work stably in 100 ℃ boiling water for a long time.
4. Increase the number and configuration of transducers, so that the actual working power of each transducer is 70-80% of the designed rated value, and extend the working life of the transducer, with an average working life of more than 12000 hours

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
ARS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
ARS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
ARS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
ARS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
ARS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
ARS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
ARS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
ARS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
ARS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
ARS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

Stainless Steel Ultrasonic Transducer Generator Submersible 40/50khz For Industry

Stainless Steel Submersible Ultrasonic Transducer for industry 40khz/50khz
