Low Power Transducer Ultrasonic Driver Generator Pcb For Ultra Sonic Cleaner
Low Power Transducer Ultrasonic Driver Generator Pcb For Ultra Sonic Cleaner
Low Power Transducer Ultrasonic Driver Generator Pcb For Ultra Sonic Cleaner
Low Power Transducer Ultrasonic Driver Generator Pcb For Ultra Sonic Cleaner
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DLB600
Certification :
CE and FCC
Place of Origin :
shenzhen china
MOQ :
1set
Price :
USD25-USD220
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
10000
Delivery Time :
1-5days
Packaging Details :
Carton box or plywood box
Power :
600W
fre :
20-40KHZ
function :
adjustable frequency
Voltage :
110V or 220V
application :
cleaning generator
Description

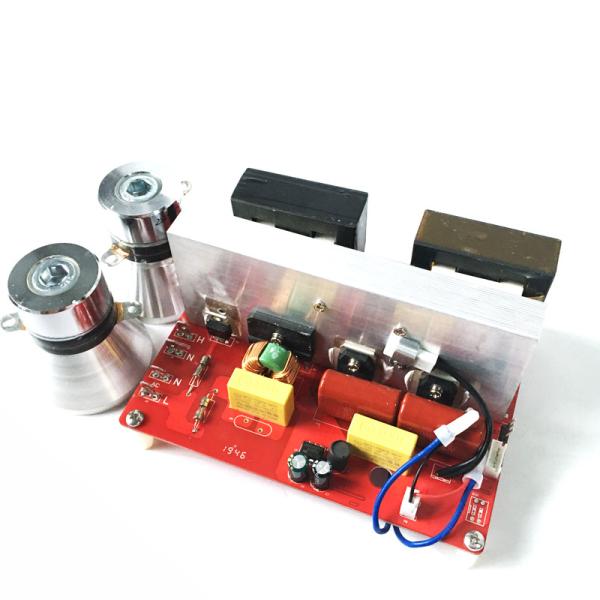

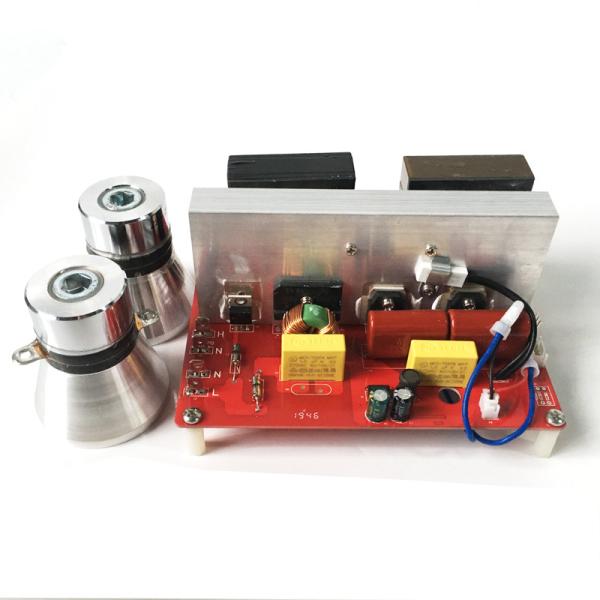

28khz/40khz Low power transducer ultrasonic driver generator pcb for ultra sonic cleaner

This ultrasonic PCB generator independently developed and produced by our company is the latest high-power ultrasonic transducer (digital) driver developed by our company, which uses embedded system as the control core and high-power tube as the output driver, with high accuracy, more prevention of external interference and stable operation. In addition to all the high reliability, long life, input and output characteristics, high insulation safety, electromagnetic compatibility and noise tolerance requirements of general electronic products, ultrasonic drivers have all the functions required for transducer matching, such as power regulation, frequency sweep, frequency automatic, alarm, timing, temperature control, remote control, etc.

Type Frequency Power Dimension
(mm)		 Transducer numbers
ARS-DLB50W 25khz,28khz,33khz,40khz 50W 132×85×45mm 1 piece
ARS-DLB60W 25khz,28khz,33khz,40khz 60W 132×85×45mm 1 piece
ARS-DLB100W 25khz,28khz,33khz,40khz 100W 132×85×45mm 1-2 pieces
ARS-DLB120W 25khz,28khz,33khz,40khz 120W 132×85×45mm 1-2 pieces
ARS-DLB150W 25khz,28khz,33khz,40khz 150W 132×85×45mm 1-3 pieces
ARS-DLB200W 25khz,28khz,33khz,40khz,80khz,100khz,135khz 200W 180×130×60mm 4 pieces
ARS-DLB300W 25khz,28khz,33khz,40khz 300W 180×130×60mm 6 pieces
ARS-DLB400W 25khz,28khz,33khz,40khz 400W 180×130×60mm 8 pieces
ARS-DLB500W 25khz,28khz,33khz,40khz 500W 180×130×60mm 10 pieces
ARS-DLB600W 25khz,28khz,33khz,40khz 600W 180×130×60mm 12 pieces

Low Power Transducer Ultrasonic Driver Generator Pcb For Ultra Sonic Cleaner

28khz/40khz Low power transducer ultrasonic driver generator pcb for ultra sonic cleaner
