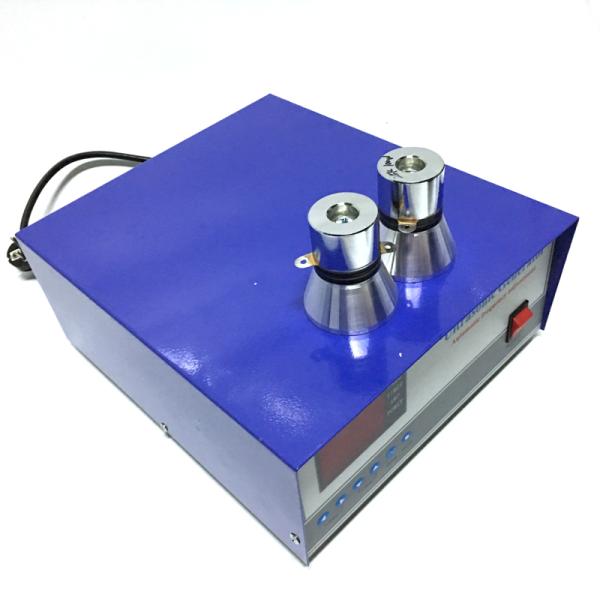

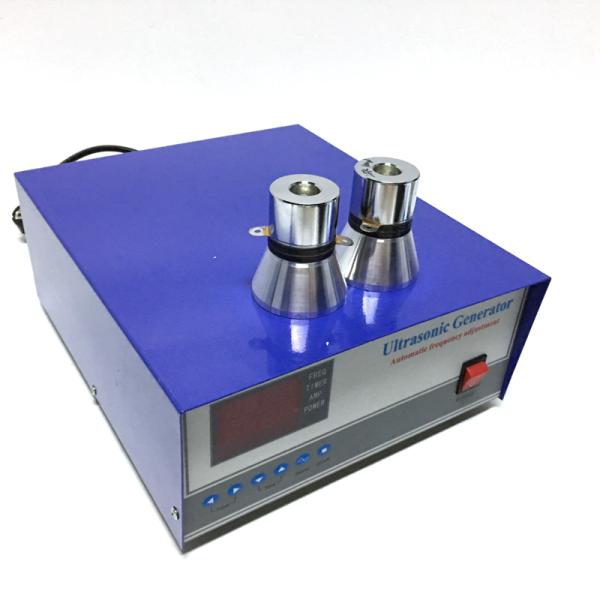

300W/600W Digital Ultrasonic Generator For Industrial Parts Cleaning Equipment
300W/600W Digital Ultrasonic Generator For Industrial Parts Cleaning Equipment
Specifications
Brand Name :
oursultrasonics
Model Number :
ARS-QXDY
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100000
Delivery Time :
3days
Packaging Details :
Professional packaging
Voltage :
220V/110V
Power(w) :
200-3000w
Condition :
New
Dimension(l*w*h) :
365*232*240
Warranty :
1 Year
Application :
Liquid
Frequency :
20kHz-40kHz
Usage :
ultrasonic homogenizer,Laboratory Mixing,Mixing disperser Liquid,liquid treatment all kinds of sonochemistry
Description

ultrasonic bath generator by 300W/600W 28khz /40khz for Industrial parts cleaning equipment

The ultrasonic generator

1. Ultrasonic generator is the core component of ultrasonic cleaning system, which is indispensable.
2. The shell of ultrasonic generator is white.
3. Power range of ultrasonic generator (with shell): small 300W, large 3000W, of which 300w-3000w is optional.
4. The frequency of ultrasonic generator can be adjusted, but the shell needs to be opened for adjustment; the power can be adjusted, timing and frequency sweep are available.
5. After the generator of any vibration system is replaced, it needs to be turned on for debugging. The debugging method is simple and can be operated under the guidance of the user. If there is no debugging, it is not necessarily in the effect.
Frequency range of ultrasonic generator:
The frequency of 20kHz / 28kHz / 40KHz, i.e. the frequency in the range of 20khz-45khz, can be realized by adjustment on one machine. 68khz-80khz-120khz and other high-frequency machines generally need a separate generator. Please consult our company for details.
Power range:
300w-3000w, single ultrasonic generator with high power 3000W, can be equipped with 50 60W vibration heads.
In addition to ultrasonic generator, the company also provides ultrasonic head, ultrasonic head glue, ultrasonic vibration plate and other ultrasonic accessories, and produces ultrasonic cleaning machine, ultrasonic vibration plate, small ultrasonic cleaning machine, ultrasonic maintenance.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

300W/600W Digital Ultrasonic Generator For Industrial Parts Cleaning Equipment300W/600W Digital Ultrasonic Generator For Industrial Parts Cleaning Equipment

ultrasonic bath generator by 300W/600W 28khz /40khz for Industrial parts cleaning equipment
