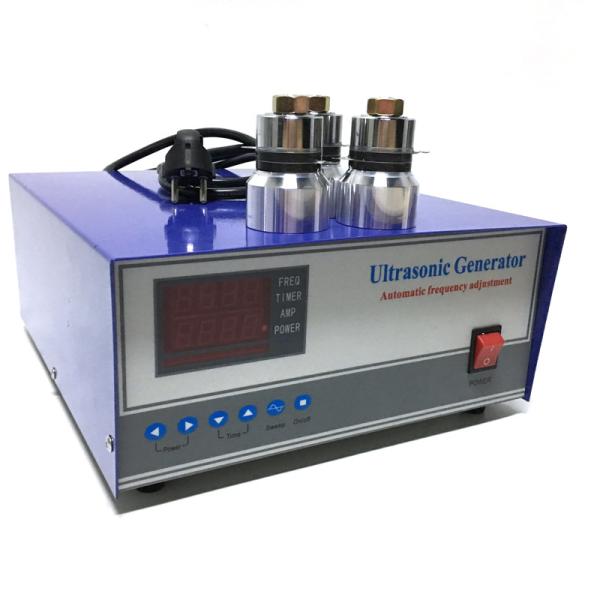

Vibrator Cleaning Machine Digital Ultrasonic Generator 28khz/40khz/80khz 300-3000W
Vibrator Cleaning Machine Digital Ultrasonic Generator 28khz/40khz/80khz 300-3000W
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-QXDY
Certification :
CE AND FCC
Place of Origin :
SHENZHEN,CHINA
MOQ :
1set
Price :
USD25-USD400
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
10000set
Delivery Time :
1-3days
Packaging Details :
CARTON BOX&FOAM
FR :
20KHZ-200KHZ
POWER :
300W-3000W
Voltage :
110V 120Vor 220V 230V240V
TIMER :
HAVE
Clean Type :
Industrial Ultrasonic Cleaner
Machine Type :
Ultrasonic Generator
WARATEE :
1 YEAR
LEADTIME :
1-3DAYS
APPLICATION :
ULTRASONIC INDUSTRY CLEANING
Description

Vibrator DIY Ultrasonic Generator for Vibrator cleaning machine 28khz/40khz/80khz

Main parameters:
Name: digital ultrasonic generator / ultrasonic power supply
Power supply voltage: AC220V 110V
Maximum current: 10A
Working frequency: 20kHz ~ 40KHz
Operating temperature: - 20 ℃ ~ + 50 ℃
Product function:
1. Real time frequency and current display, double digital tube design, clear and clear.
2. Power on self starting function to solve user's troubles.
3. The timing stop function can control the cleaning time precisely when there are strict requirements.
4. It has over-current, high voltage and overheat protection, which can effectively protect the power supply from burning.


900W1000W1200W 40KHZ 28KHZ ULTRASONIC CLEANING MACHINE DRIVER CIRCUIT ULTRASONIC GENERATOR​

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request



Multi-frequency Ultrasonic cleaning generator

Type Power(W) Frequency (KHz) Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-SPDY-38/80 KHZ P 4 300W-1800W 38khz/80khz 300x360x150
ARS-SPDY-40/100KHZ P 4 300W-1800W 40khz/100khz 300x360x150
ARS-TPDY-28/83/130 KHZ P4 300W-1200W 28khz/83khz/130khz 300x360x150
ARS-TPDY-25/45/80KHZ P4 300W-1200W 25khz/45khz/80khz 300x360x150
ARS-TPDY-33/89/135KHZ P4 300W-1200W 33khz/89khz/135khz 300x360x150
ARS-TPDY-28/41/123KHZ P4 300W-1200W 28khz/41khz123khz 300x360x150
ARS-TPDY-40/80/120K 300W-1200W 40khz/80khz/120khz 300x360x150
ARS-FPDY-28/60/70/84KHZP4(quadruple frequency)60W70K 300W-1200W 28khz/60khz/70khz/84khz 300x360x150
ARS--FPDY-40/77/100/170KHZ P4 300W-1200W 40khz/77khz/100khz/170khz 300x360x150

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Vibrator Cleaning Machine Digital Ultrasonic Generator 28khz/40khz/80khz 300-3000W

Vibrator DIY Ultrasonic Generator for Vibrator cleaning machine 28khz/40khz/80khz
