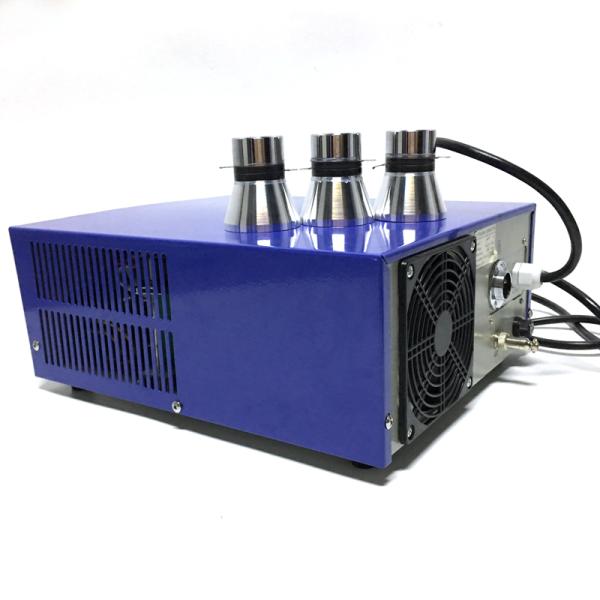

Piezoelectric Digital Ultrasonic Generator Industry Cleaner Equipment Applied
Piezoelectric Digital Ultrasonic Generator Industry Cleaner Equipment Applied
Specifications
Brand Name :
oursultrasonics
Model Number :
ARS-QXDY
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100000
Delivery Time :
3days
Packaging Details :
Professional packaging
Voltage :
220V/110V
Power(w) :
200-3000w
Condition :
New
Dimension(l*w*h) :
365*232*240
Warranty :
1 Year
Application :
Liquid
Frequency :
20kHz-40kHz
Usage :
ultrasonic homogenizer,Laboratory Mixing,Mixing disperser Liquid,liquid treatment all kinds of sonochemistry
Description

Digital ultrasonic Piezoelectric Generator for industry cleaner equipment 1000W/2000W/3000W

In the design of ultrasonic power source, the matching design of generator and transducer is very important, which determines whether the ultrasonic equipment can work normally and efficiently. The matching of ultrasonic generator and transducer includes two aspects: impedance matching and tuning matching. Impedance matching makes the impedance of transducer transform into the best load, that is to say, it plays the role of impedance transformation. The voltage and current at both ends of the transducer are in phase with the tuning matching, so that the efficiency is the highest. At the same time, the series resonance can improve the voltage at both ends of the transducer, which is conducive to the excitation of the piezoelectric transducer.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Piezoelectric Digital Ultrasonic Generator Industry Cleaner Equipment Applied

Digital ultrasonic Piezoelectric Generator for industry cleaner equipment 1000W/2000W/3000W
