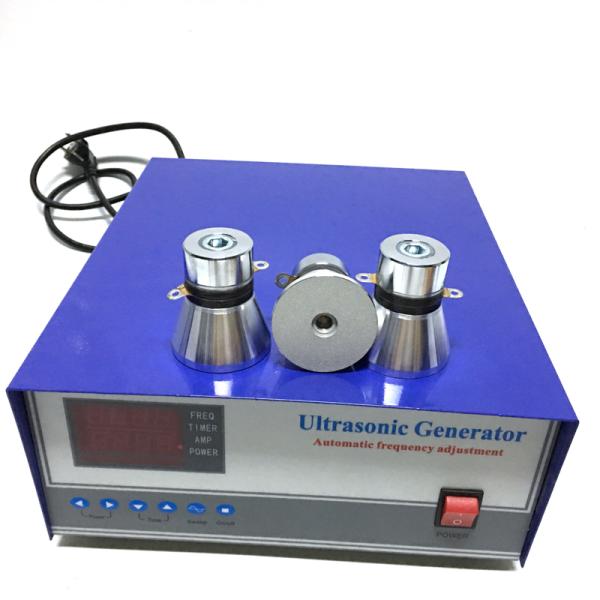

High Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency Cleaning
High Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency Cleaning
High Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency Cleaning
High Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency Cleaning
Specifications
Brand Name :
oursultrasonics
Model Number :
ARS-QXDY
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100000
Delivery Time :
3days
Packaging Details :
Professional packaging
Voltage :
220V/110V
Power(w) :
200-3000w
Condition :
New
Dimension(l*w*h) :
365*232*240
Warranty :
1 Year
Application :
Liquid
Frequency :
20kHz-40kHz
Usage :
ultrasonic homogenizer,Laboratory Mixing,Mixing disperser Liquid,liquid treatment all kinds of sonochemistry
Description

Digital Driving Ultrasonic generator for cleaning machine 28khz/40khz/200khz frequency cleaning

A digital high-power multi-purpose ultrasonic power supply system is mainly composed of computer digital processing, broadband frequency optional signal source, driving circuit, frequency automatic tracking, fast protection, impedance matching, display board and keyboard to form a friendly interface convenient for human-computer dialogue. It can drive up to 16 drive circuit boards (extension boards) with a maximum power of 32kw. When using, the output transformer and inductance are connected with the ultrasonic transducer. The size of the core, the parameters of the winding and the turn ratio of the output transformer, the size of the core and the parameters of the winding of the inductance should match the electrical parameters and the connection mode of the ultrasonic transducer, so as to make it universal. The power supply system can be used as the power supply of ultrasonic cleaning equipment, ultrasonic emulsification equipment, ultrasonic extraction equipment, ultrasonic welding equipment and ultrasonic wastewater treatment equipment.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

High Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency CleaningHigh Power Digital Ultrasonic Generator 28khz/40khz/200khz Frequency Cleaning

Digital Driving Ultrasonic generator for cleaning machine 28khz/40khz/200khz frequency cleaning
