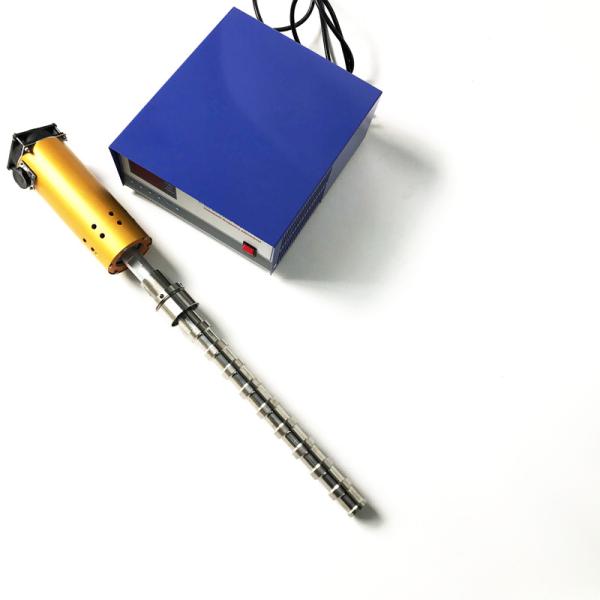

Tube Reactor Digital Ultrasonic Generator 20khz 2000w For Through Flow Sonochemistry
Tube Reactor Digital Ultrasonic Generator 20khz 2000w For Through Flow Sonochemistry
Specifications
Brand Name :
oursultrasonics
Model Number :
ARS-UR1000W
Certification :
CE
Place of Origin :
china
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1000
Delivery Time :
3-5 days
Packaging Details :
Wooden case
Frequency :
15KHZ/20KHZ/35KHZ
Power :
1000W-3000W
Voltage :
110V/220V/380V/Customize
Warranty :
1 Year
Application :
flow-through
Condition :
New
Type :
Digital Display
transducer :
1pcs
Description

ultrasonic Tube Reactor for through-flow Sonochemistry 20khz 2000watt ultrasonic power

The concentrated energy ultrasonic material emulsifying and dispersing device directly immerses the horn of the high-power ultrasonic transducer into the reaction liquid, so that the sound energy can directly enter the reaction system without having to pass through the reactor wall of the cleaning tank. Its advantage is that it can transfer a large amount of energy directly to the reaction medium, effectively convert electrical energy into mechanical energy, and can control the size of ultrasonic energy by changing the amplitude transmitted to the transducer.
The product has strong scalability
(1) optional cooling water circulation device, cooling water circulation device and special double-layer glass reaction kettle constitute the cooling water circulation system, which can realize accurate temperature control at any temperature point within the range of - 5-100 ℃, effectively avoiding tissue damage caused by high temperature, which is more convenient and accurate than traditional ice bath temperature reduction.
(2) magnetic stirrer is optional. The emulsification rate of the treated sample can be improved by stirring, and the treatment effect is better.

Tubular Equipment
Type		 Frequency
(KHz)		 Ultrasound
Output(W)		 Total Length
(mm)		 Diameter
(mm)		 Static Capacity
(pF±10%)
ARS-UR1000W 20 1000 500 Φ50-55 68000
ARS-UR1500W 20 1500 850 Φ50-55 68000
ARS-UR2000W 20 2000 1100 Φ50-55 132000

ultrasonic Tube Reactor for through-flow Sonochemistry 20khz 2000watt ultrasonic power
