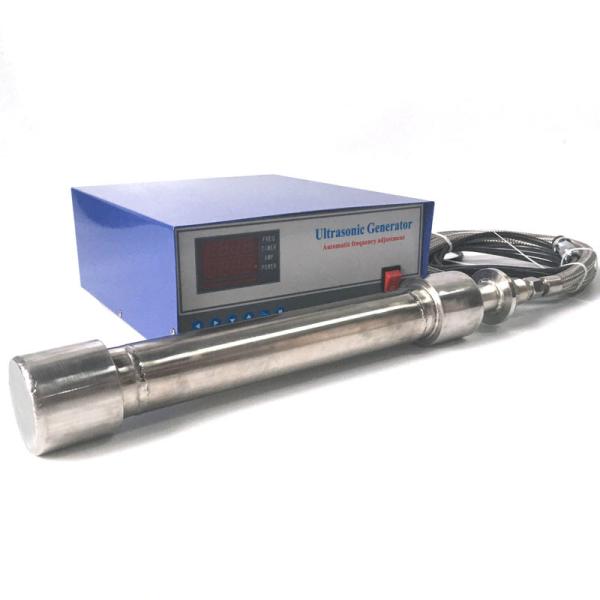

Industry Ultrasonic Reactor Cleaning Equipment 28khz/40khz 1000 Watt New Condition
Industry Ultrasonic Reactor Cleaning Equipment 28khz/40khz 1000 Watt New Condition
Specifications
Brand Name :
oursultrasonics
Model Number :
ARS-US1000
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1000
Delivery Time :
3-5 days
Packaging Details :
Wooden case
Voltage :
220V/110V
Power(w) :
1200W,200-3000w
Condition :
New
Warranty :
1 Year
Application :
Liquid,Chemicals Processing,Medicine Processing,Liquid with Suspended Solids,Food Processing
Machine type :
Horizontal Powder Material Agitator
Display :
Digital display
Description

ultrasonic reactor cleaning equipment 28khz/40khz 1000Watt for industry cleaning machine

The radial vibration of the rod body is produced by a high-power and large amplitude transducer, and the ultrasonic wave is produced uniformly at 360 ° of the vibrating rod. Its amplitude is between the ultrasonic cleaner and the processor, so the direction of use is relatively flexible. It can be used for the cleaning and emulsification of any tank oil products, and can be * * placed in any position of the tank, while the occupied volume space is very small and can be used very flexibly. It is used in the reactor, oil container, etc. It can be used to accelerate dissolution, reaction, oil emulsification and prevent scaling on the inner wall.

Main applications:
1. Dispersion and homogenization of material particles, and emulsification of products. For example, the dispersion of nano materials, polymer homogeneity.
2. Extraction of traditional Chinese medicine, breakage of cells, bacteria and viral tissues. For example, extraction of cell contents.
3. Accelerate dissolution and chemical reaction. For example, technical parameters for chemical synthesis:
Technical parameters table:
1. Power / signal generator: net power output; 1500W frequency: 20kHz net weight: 8kg
2. Piezoelectric frequency conversion energy converter: cv33, PZT lead zirconate titanate piezoelectric ceramic
Diameter: 50mm length: 130mm weight: 1300g cable length: 500cm
3. Standard probe: titanium alloy material
Head diameter: 50mm, total length: 244mm, weight: 3000g
4. Power supply: 220V / 50Hz

Tubular Equipment
Type		 Frequency
(KHz)		 Ultrasound
Output(W)		 Total Length
(mm)		 Diameter
(mm)		 Static Capacity
(pF±10%)
ARS-US1000 25-27 1000 500 Φ50-55 68000
ARS-US1500 25-27 1500 850 Φ50-55 68000
ARS-US2000 25-27 2000 1100 Φ50-55 132000

Industry Ultrasonic Reactor Cleaning Equipment 28khz/40khz 1000 Watt New Condition

ultrasonic reactor cleaning equipment 28khz/40khz 1000Watt for industry cleaning machine
