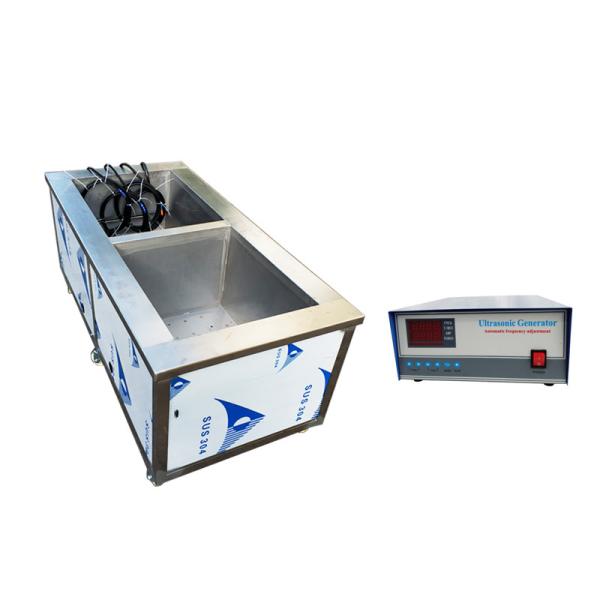

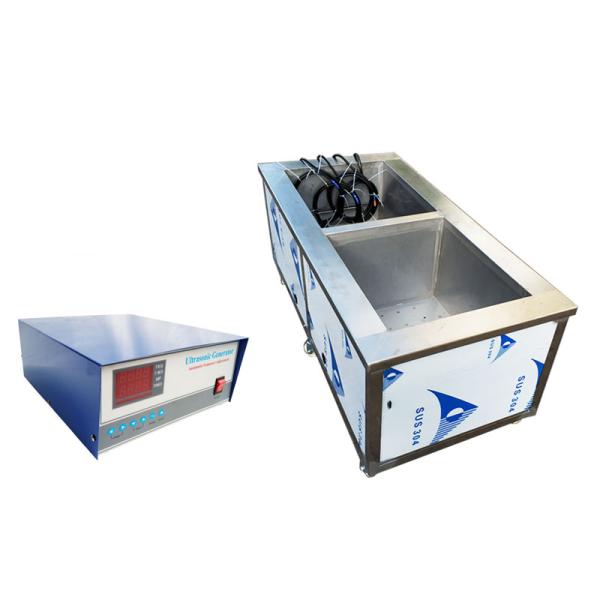

80khz Industrial Ultrasonic Washing Machine , Digital Ultrasonic Cleaner 2000 Watt
80khz Industrial Ultrasonic Washing Machine , Digital Ultrasonic Cleaner 2000 Watt
80khz Industrial Ultrasonic Washing Machine , Digital Ultrasonic Cleaner 2000 Watt
80khz Industrial Ultrasonic Washing Machine , Digital Ultrasonic Cleaner 2000 Watt
Specifications
Brand Name :
OURS ULTRASONIC
Model Number :
ARS-DQXJ-1024
Certification :
CE AND FCC
Place of Origin :
China
MOQ :
1SET
Price :
USD1280-USD1680
Payment Terms :
T/T, Western Union PAYPAL
Supply Ability :
2000set month
Delivery Time :
3-5 days
Packaging Details :
Carton box or plywood box
power :
300w-3000w
Voltage :
110V and 220V
FR :
17khz-200khz
Machine Type :
Industrial Ultrasonic Cleaner
Condition :
new
Use :
Degreasing
Application :
ultrasonic cleaning machine
Description

80 khz ultrasonic tank cleaner machines 28khz/40khz/80khz/2000Watt

The structure of the ultrasonic cleaner generally has two forms: the combination of the ultrasonic power supply and the cleaner or the separate layout. Generally, the low-power (below 200W) ultrasonic cleaner uses the integrated structure, while the high-power cleaner uses the split structure.
The separate structure of ultrasonic cleaner consists of three main parts
(1) clean the cylinder;
(2) ultrasonic generator;
(3) ultrasonic transducer.
The ultrasonic generator for ultrasonic cleaner has the following characteristics:
(1) the resonance frequency and impedance of the transducer vary greatly with the depth of the cleaning solution. However, the practice shows that after a proper amount of cleaning materials is put into the tank, basically
It can be stabilized at a certain value.
(2) generally speaking, due to the small change of cleaning load, complex frequency automatic tracking circuit is not required.
(3) ultrasonic cleaner is a practical ultrasonic generator, most of which use high-power self-excited feedback oscillator.

Type Internal size
L*W*H (mm)		 Outsize mm
L*W*H (mm)		 Frequency (Khz)

Power
(W)

Heating
(W)

 Total power(W) voltage
ARS-DQXJ-1006 280×210×210 320×250×350 20,28,33,40,80,130 300 1000 1300 220V
ARS-DQXJ-1012 400×310×280 520×430×600 20,28,33,40,80,130 600 3000 3600 220V
ARS-DQXJ-1018 490×360×320 610×480×675 20,28,33,40,80,130 900 3000 3900 220V
ARS-DQXJ-1024 630×430×320 740×550×675 20,28,33,40,80,130 1200 4000 5200 220V
ARS-DQXJ-1030 630×530×320 750×650×675 20,28,33,40,80,130 1500 4000 5500 220V
ARS-DQXJ-1036 680×530×360 800×650×700 20,28,33,40,80,130 1800 5000 6800 220V
ARS-DQXJ-1040 680×570×400 830×710×735 20,28,33,40,80,130 2000 5000 7000 220V
ARS-DQXJ-1041 730×570×450 880×710×735 20,28,33,40,80,130 2400 6000 8400 220V
ARS-DQXJ-1042 790×670×510 940×765×785 20,28,33,40,80,130 3000 6000 9000 380V
ARS-DQXJ-1043 850×770×570 990×820×785 20,28,33,40,80,130 4000 7000 11000 380V
ARS-DQXJ-1044 910×820×620 1050×880×840 20,28,33,40,80,130 5000 7000 12000 380V
ARS-DQXJ-1045 960×870×680 1100×940×920 20,28,33,40,80,130 8000 8000 16000 380V
ARS-DQXJ-1046 1100×930×730 1160×1000×980 20,28,33,40,80,130 10000 8000 18000 380V


80khz Industrial Ultrasonic Washing Machine , Digital Ultrasonic Cleaner 2000 Watt

80 khz ultrasonic tank cleaner machines 28khz/40khz/80khz/2000Watt
