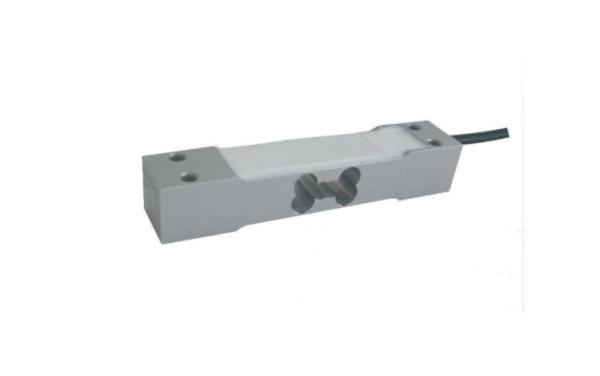

40kg Counting Scale Barcode Scale Force Load Cell OIML C3 Approval
40kg Counting Scale Barcode Scale Force Load Cell OIML C3 Approval
Specifications
Range :
5,8,10,15,20,30,35,40kg
Temperature Range :
-20— + 40
Product Name :
Force Load Cell
Material :
Stainless Steel Or Alloy Steel
Rated Output :
2.0±0.002mv/v
Readability :
1/3000
Description

40kg counting scale, barcode scale Compact structure easy installation

Product Details

FEATURES:

● Capacity: 5kg to 40kg

● Compact structure,easy installation

● OIML C3 approval

APPLICATION:

● Pricing scale, counting scale, barcode scale, etc.

● Variety kinds of press testing devices

Rated capacity L L1 L2 L3 L4 H W T H1
400g,800g,2kg 130 3 17 90 25 25 12 M4 10

SPECIFICATION:
Rated capacity: 400g to 2kg Recommended Excitation:10V DC
Rated output:1.0±0.2mv/v Maximum Excitation:15V DC
Combined error:C3 Environment protection: IP65
Zero balance: ±5%Emax Input impedance: 404±15Ω
Creep error(30minutes):±166ppm Output impedance: 350±3Ω
Temperature effect on zero: ±28ppm/℃ Insulation resistance at 50V DC: ≥2000MΩ
Temperature effect on output: 0℃~+40℃,±17.5ppm/℃ Material: Aluminium
Compensated temperature range: 0℃~+40℃ Cable length: 0.5meter, diameter Φ3mm
Operating temperature range: 0℃~+50℃ Max.platform size:200×200mm
Maximum safe overload:150%Emax Installation torque,recommended:3N.m
Ultimate safe overload:300%Emax
