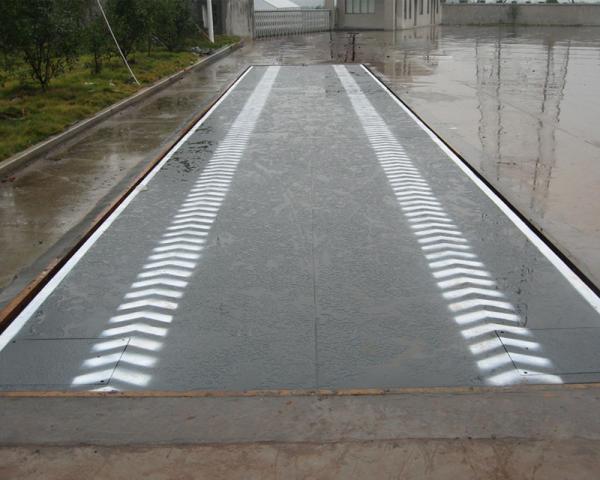

40 ton Weighbridge Price Digital Truck Scale with Printer & Indicator

1. Comprehensive structure and function features

Auto-resetting, force-transmitting mechanism
Gross weight, net weight and tare displaying
Digital wave filtering, auto zero tracking
Auto deducting tare, clearing tare

State displaying of trend, short load, over load, etc.

Module, standard and serial scale body, multi-unit assembly

Keyboard setting / calibrating
Auto breakdown diagnosing
Data output / auto printing
Double lightening protection

Vehicle number and tare memorizing, single and total item accumulating
Auto-compensation of temperature, linearity, creep and hysteresis (digital)

Analog / digital double shearing-beam, bridge-type load cell made of alloy steel
Analog / digital full-sealing, column-type load cell made of stainless steel, strong water-proof and anti-corrosive function

2. Comprehensive technical parameter
Accuracy class: OIML III
Weighing range: 10 ~ 200t
Length of platform assembly: 6 ~ 24m
Platform width: 3 / 3.4m
Safety overload: 130% Max

Max transmitting distance of analog signal: 100m
Max transmitting distance of digital signal: 1000m

Relative humidity: < 95%
Working temperature: -10 ~ +40°C (indicator)
-30 ~ +65°C (scale body)

Operating power supply: 240 / 220 / 110VAC, 50 / 60Hz
Note: The lowest working temperature of scale body can be down to -40°C according to user’s demand

3. Features of digital truck scales
1). Numeral transformation technology and compensation
The Inner part of the weighing load cell contains module conversion device and CPU processing unit.
Auto-compensation with digital technology to the parameter of load cell such as non-linearity, temperature, etc.
Free of calibrating for the scale if the load cells are replaced.
2). With the calibrating and digital technology, bias-load (four corners) calibration of the truck scale can be completed only once.
3). Digital communications technology
The central line structure can be used by several weighing load-cells (up to 32) in the same system.
RS485 interface is used and long-distance signal transmission is possible, with the transmission distance not less than 1000m.
Output signal at 3~4V strengthens the capability of anti-interference and lightening protection of the system.
4). Intelligent technology
The parameter of the load cell can be changed according to the orders.
Different wave-filtering ways can be adopted according to different situations.
5). Module, standard and series scale body, multiunit assembly
6). Digital load cell of full-sealing column and laser-welded stainless steel, with accuracy of C3, strong water-proof and anti-corrosive function

4. FAQ

1) Q: Are you trading company or factory?
A: We are manufacturer and trader for more than 15 years experiences in electronic weighing scales.

2) Q: Can I print our logo on the products and change the color of products?
A: Yes,we can accept your request and can do OEM service.

3) Q: Can I get a sample?
A: Of course,but you need to pay sample charge and delivery fee.

4) Q: What certificates your products have?
A: Most of our products have CE,ROHS and OIML certificates.Don't worry about the quality!

5) Q: How long is your warranty terms?
A: Our Warranty term is one year guarantee!

6) Q: What's your delivery time?
A: Usually it can be within 7 days and also depends on the order quantity.

7) Q: What is your accept payment method?
A: We can accept TT,L/C at sight,West union,T/T 30% deposit and 70% before shipment!

8) Q: What’s your MOQ?

A: One set.
