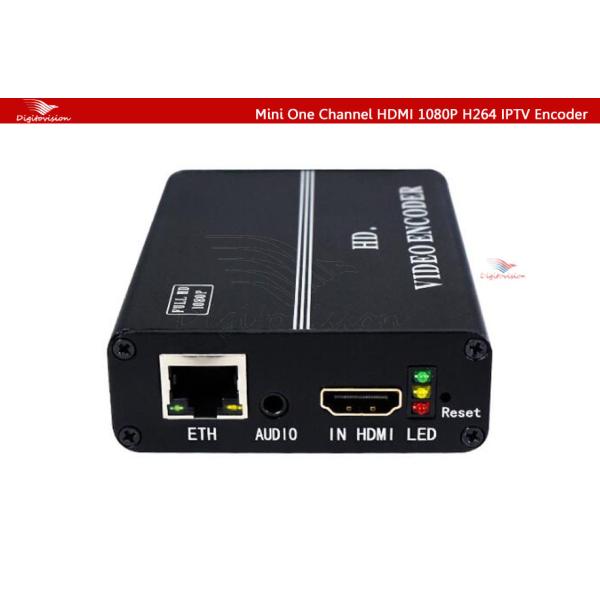

Mini One Channel HDMI 1080P H264 IPTV Encoder
Mini One Channel HDMI 1080P H264 IPTV Encoder
Mini One Channel HDMI 1080P H264 IPTV Encoder
Mini One Channel HDMI 1080P H264 IPTV Encoder
Mini One Channel HDMI 1080P H264 IPTV Encoder
Mini One Channel HDMI 1080P H264 IPTV Encoder
Specifications
Brand Name :
digitovision
Model Number :
DGTE-HHI-MN
Place of Origin :
CHENGDU
MOQ :
1SET
Price :
$250~$300
Supply Ability :
1000set/week
Packaging Details :
1set/ctn
Product Name :
Mini One Channel HDMI 1080P H264 IPTV Encoder
Product ID :
L7520-1
Price Range :
$250~$300
Input :
HDMI (SDI) or HDMI+AV optiaonal
Output :
IP output with HTTP/RSTP/RTP/RTMP/UDP/ONVIF/HLS
Encoding :
MPEG-4 AVC/H.264
Control :
Web-server
Description

Mini One Channel HDMI 1080P H264 IPTV Encoder

Outline

IPTV Encoder is a professional audio and video encoding products, which support 1-channel audio and video capture features high definition HDMI, 1 3.5MM independent audio interface acquisition, dual streaming H.264 encoded output format, audio MP3, AAC, G711 formats. The code rate can be freely adjusted according to the need. The device is highly integrated, cost-effective. Support HTTP/RSTP/RTP/RTMP/UDP/ONVIF/HLS transport protocols. Support for external audio input. It is easy to install, plug-play, and there is no computer hardware compatibility issues.

Mini One Channel HDMI 1080P H264 IPTV Encoder

Features

1.Compatible to different network protocol: RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast( RTMP support adding users and changing passwords)

2. Support Main TS stream and the sub TS stream use in different network protocols for transmission

3.Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

4.Easy operation with Web management

5. OSD rolling, images superimposing

6. DHCP gaining IP automatic, One-key recovery, upgrade and remote maintenance

7.Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

8.Support build-in or external methods, support left and right sound channel, support audio gain, be able to turn volume individually

9.Low power consumption design

10.Reliable and Cost-effective, Free Unlimited Tech Support and 3 Years warranty

Mini One Channel HDMI 1080P H264 IPTV Encoder

Technical Parameter

Product model HDMI encoder
Input 1 HDMI input, 1 3.5MM channel audio input
Output 1 channel IP signal output
Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution
Coding standard H.264
Coding level

H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE

Encoded size

 640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 60
OSD Character, images
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000,44100 ,48000etc

IP

output

 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, UDP,ONVIF,HLS multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply 12V~2A
power consumption 5W
Size 103mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 1 KG
