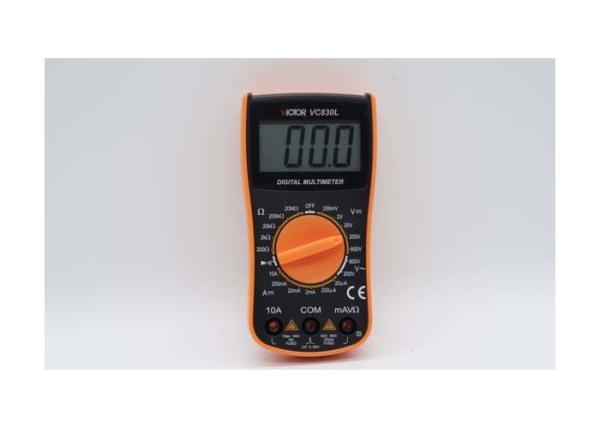

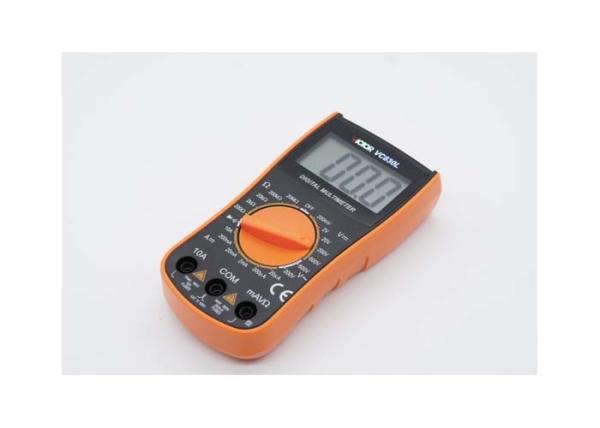

VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC
Specifications
Brand Name :
VICTOR
Model Number :
VC830L
Certification :
CE
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
5-8DAYS
Packaging Details :
CARTON
Power Supply :
9V battery (NEDA1604/6F22 or equivalent)
Weight :
170g (including a 9V battery)
Max Display :
1999 (31/2) auto polarity indication.
PRODUCT MODEL :
VC830L
Displaying :
LCD displaying
SIZE :
145×85×30mm (Length×Width×Height)
Description

Digital Multimeter VICTOR VC830L Stable And High Performance

The instrument is a pocket digital multimeter, which is used to measure DCV, ACV, and DCA, resistance, diode and continuity test. It is an ideal tool for labs, household and wireless enthusiasts.

Specifications of Digital Multimeter VICTOR VC830L:

1. Displaying: 22mm digit height LCD display.

2. Max. Indication: 1999 (31/2) auto polarity indication.

3. Sampling rate: approx. 3 times/ sec

4. Over Range Indication: MSD displays "1"

5. Low Battery Indication: " " symbol displays.

6. Operation Environment: (0～40)℃, relative humidity ＜80% .

7. Power: 9V battery (NEDA1604/6F22 or equivalent)

8. Measurement: 145×85×30mm (Length×Width×Height)

9. Weight: Approx. 170g (including a 9V battery)

10. Accessories: Operation Manual, Product Certificate, Packing box, Test leads and a 9V battery.

Technical date of Digital Multimeter VICTOR VC830L:

Basic Function Range 　 　 Basic accuracy
DC Voltage 200mV/2V/20V/200V/600V 　 　 ±(0.5%+4)
AC Voltage 200V/600V 　 　 ±(1.2%+10)
DC Current 20uA/200uA/2mA/20mA/200mA/10A 　 　 ±(1.5%+3)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/20MΩ 　 　 +(0.8%+5)
Special Function 　 VC830L 　 　
Diode test 　 yes 　 　
Continuity buzzer 　 yes 　 　
Low battery indication 　 yes 　 　
Input impedance 　 10MΩ 　 　
Sampling rate 　 3 times/s 　 　
AC frequency response 　 (40-400)Hz 　 　
Operation way 　 Manual range 　 　
Max.Display 　 1999 　 　
LCD size 　 57x33mm 　 　
Battery 　 9V(6F22) 　 　
Product color 　 　 Case:black;Holster color:orange 　
Product Net Weight 　 　 Approx. : 150g(include battery) 　
Product Dimension 　 　 138x72x35mm 　
Standard Accessories 　 　 Test leads/battery/instruction manual 　
Standard inner packing 　 　 Color box 　
Standard Quantity Per Carton 　 　 60Pcs 　
Carton Size 　 　 470x325x350mm 　
Standard Gross Weight 　 　 Approx.:16.4kg 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　

VICTOR VC830L Portable Digital Multimeter Handheld Dmm AC DC

FAQ

1. What is our company MOQ?

As for now it is flexible, but it affects prices.

2. What's the best payment term?

Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.

3.What's our company sample policy?

We will send you some samples with pleasure,but you need to pay for it.

4. What is our shipment and delivery term?

Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
