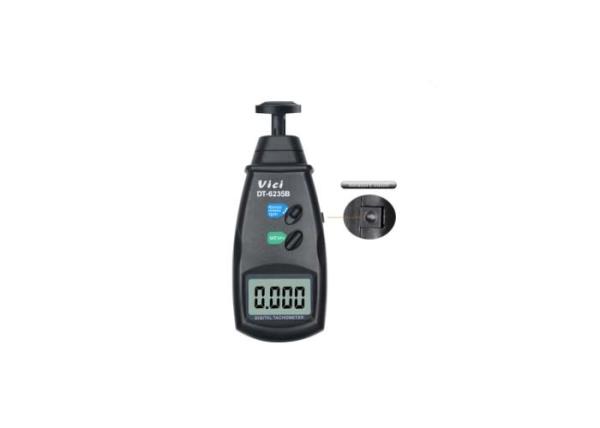

DT-6235B 0.5 RPM Laser Photo Tachometer Auto Memory Electric RPM Meter
DT-6235B 0.5 RPM Laser Photo Tachometer Auto Memory Electric RPM Meter
Specifications
Model Number :
DT-6235B
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
3-5 work days
Packaging Details :
carton
model :
DT-6235B vici
Max. display :
19999
Battery :
4X1.5V AA Size Battery
Range selection :
Auto switch
Sampling time :
0.5s(over 120RPM)
Memory :
Auto memory Max./Min. last value and auto store 96teams dat
Description

DT-6235B 0.5~999.9RPM Laser Photo Tachometer Electric RPM Meter

Features of DT-6235B Laser Photo Tachometer

It is used the microcomputer (CPU) technique and junction laser technique.

Wide measuring range and high resolution.

Low battery voltage indication.

The tachometer can be connected 6V direct current stable voltage power in favor of using for long time.

The last displayed value/max. Value/min. Value can be automatically stored in memory and 96s of measured value continuously.

The instrument is delicate and rugged. It uses durable, long-lasting components and a strong, light weight ABC plastic housing.

Specifications of DT-6235B Laser Photo Tachometer

Special function DT-6235B
Measuring way Contacted
Resolution

Rotation speed:

0.1RPM(r/min)(0.5~999.9RPM)

1RPM(r/min)( over 1000RPM)

Surface speed:

0.01m/min(0.05~99.99m/min)

0.1m/min(over 100m/min)

0.1ft/min (0.1~999.9ft/min)

1ft/min (over 1000ft/min)
Sampling time 0.8(over 60RPM )
Range selection Auto switch
Power Consumption: Max. 45mA
Memory Auto memory Max./Min. last value and auto store 96teams data
Time Base 6MHz Quartz crystal
Accuracy of time base 10×10-6 (0℃~50℃)
Battery 4X1.5V AA Size Battery or to external DC 6V
Max. display 99999
LCD size 5digits, 18mm high

Technical parament of DT-6235B Portable Speed Indicator Digital Tachometer

Basic function Range Basic accuracy
Contact rotation speed 0.5~19,999RPM (r/min) ±(0.05%+1 digit)
Contact surface speed(Metric ) 0.05~1999.9m/min (m/Min) ±(0.05%+1 digit)
Contact surface speed(Imperial) 0.2~6560ft/min (inch/min) ±(0.05%+1 digit)

DT-6235B 0.5 RPM Laser Photo Tachometer Auto Memory Electric RPM Meter

FAQ

1. What is our company MOQ?

As for now it is flexible, but it affects prices.

2. What's the best payment term?

Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.

3.What's our company sample policy?

We will send you some samples with pleasure,but you need to pay for it.

4. What is our shipment and delivery term?

Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
